FAG HC6202-C-2HRS-TVH-L207-C3>V

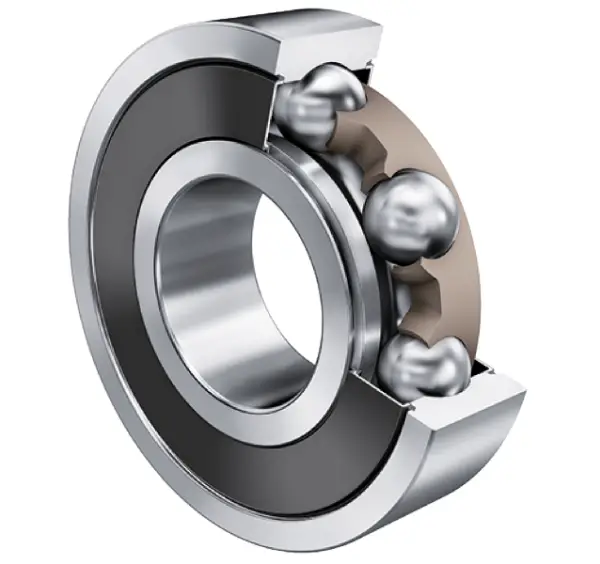

Deep groove ball bearing HC62..-C-2HRS-TVH, Hybrid bearing, single row, Generation C, seals, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
15 mm
Bore diameter
D
35 mm
Outside diameter
B
11 mm
Width
Cr
8,900 N
Basic dynamic load rating, radial
C0r
3,600 N
Basic static load rating, radial
Cur
189 N
Fatigue load limit, radial
CG
19,400 1/min
Limiting speed
≈m
0.039 kg
Weight
Mounting dimensions
da min
19.2 mm
Minimum diameter shaft shoulder
da min
30.8 mm
Maximum diameter of housing shoulder
ra max
0.6 mm
Maximum fillet radius
