FAG S6002-2RS-FD>W

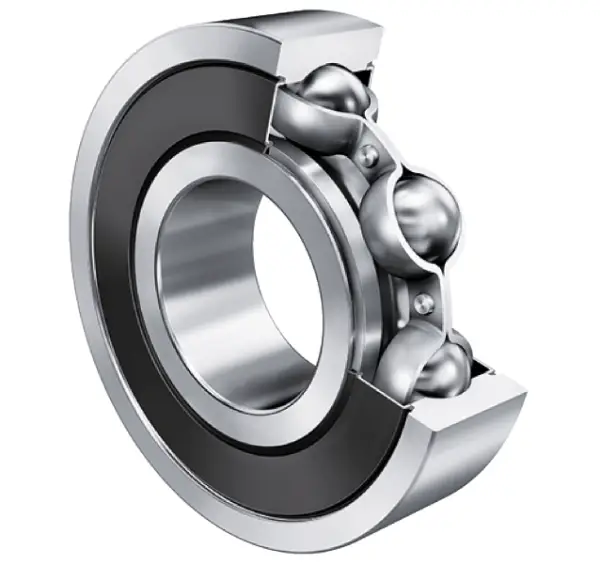

Deep groove ball bearing S60..-2RS-FD, corrosion-resistant materials, for Food industry, single row, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

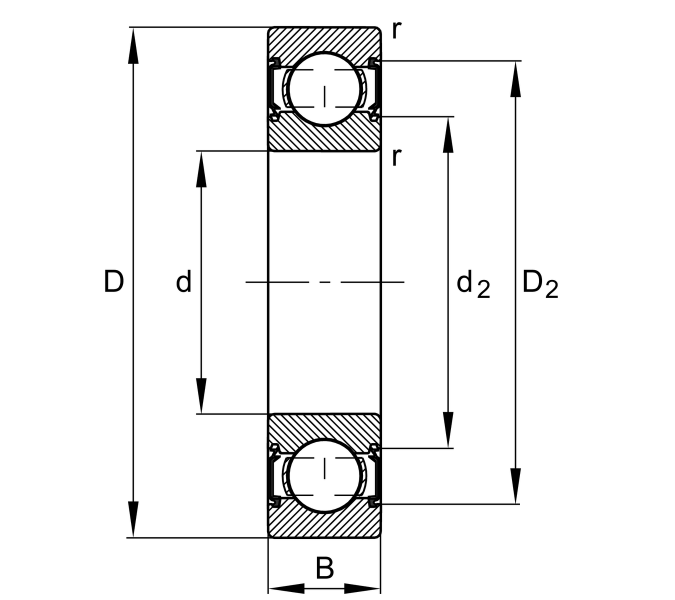

Main Dimensions & Performance Data
d
15 mm
Bore diameter
D
32 mm
Outside diameter
B
9 mm
Width
Cr
5,580 N
Basic dynamic load rating, radial
C0r
2,840 N
Basic static load rating, radial
Cur
129 N
Fatigue load limit, radial
CG
15,000 1/min
Limiting speed
≈m
0.03 kg
Weight

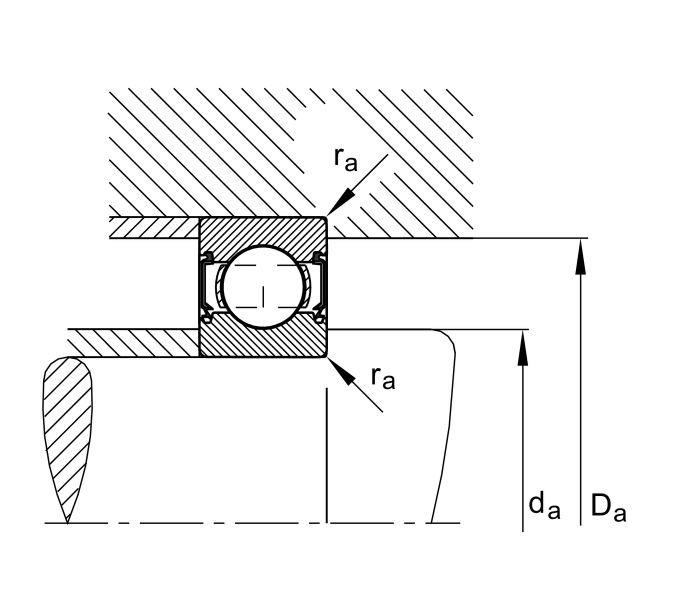

Mounting dimensions
da min
17 mm
Minimum diameter shaft shoulder
da min
30 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
