FAG S6003-2RS-FD>W

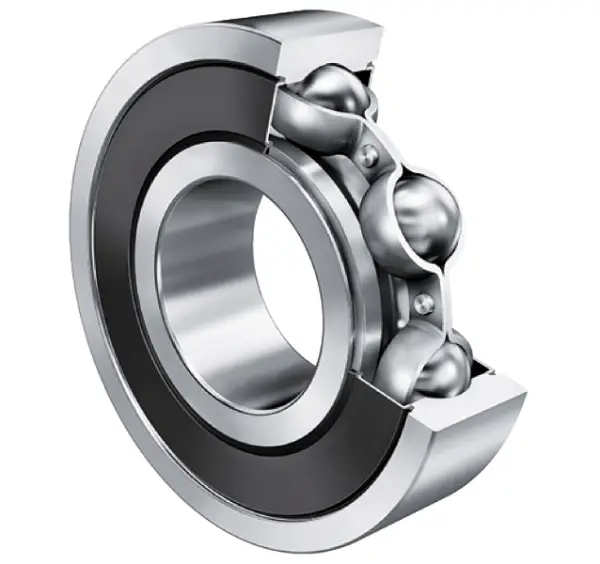

Deep groove ball bearing S60..-2RS-FD, corrosion-resistant materials, for Food industry, single row, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

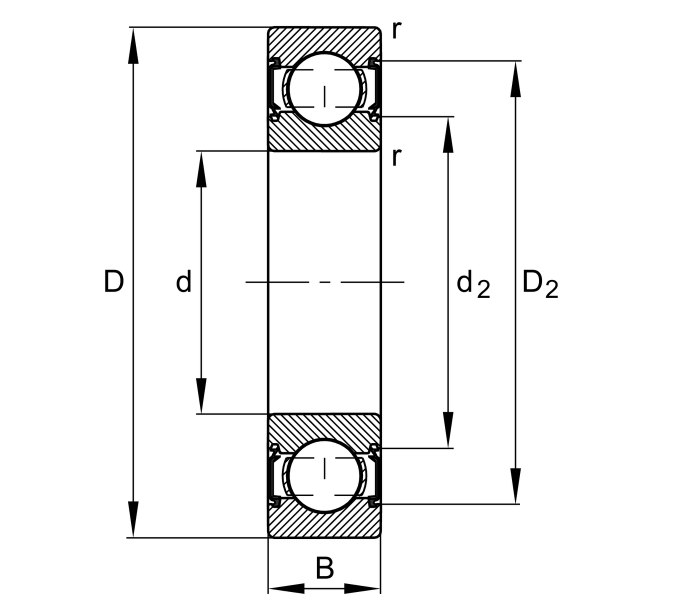

Main Dimensions & Performance Data
d
17 mm
Bore diameter
D
35 mm
Outside diameter
B
10 mm
Width
Cr
6,000 N
Basic dynamic load rating, radial
C0r
3,250 N
Basic static load rating, radial
Cur
148 N
Fatigue load limit, radial
CG
13,000 1/min
Limiting speed
≈m
0.039 kg
Weight

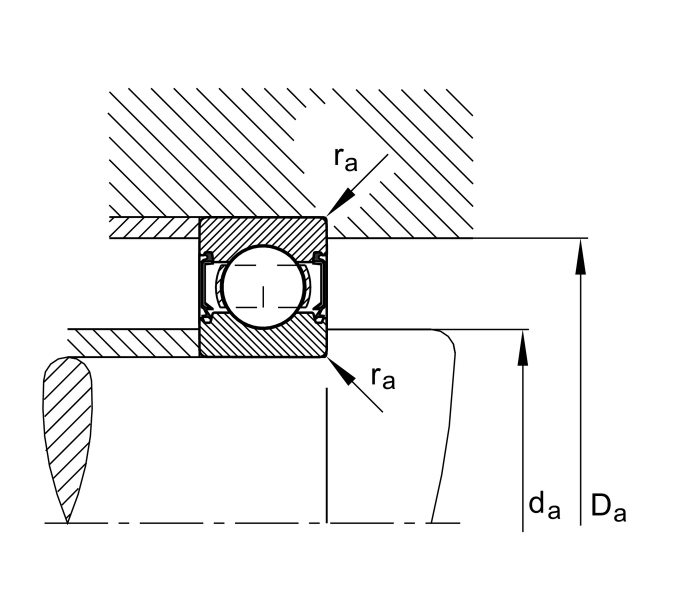

Mounting dimensions
da min
19 mm
Minimum diameter shaft shoulder
da min
33 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
