FAG S607-2RSR>N
Deep groove ball bearing S60..-2RSR, corrosion-resistant materials, single row, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

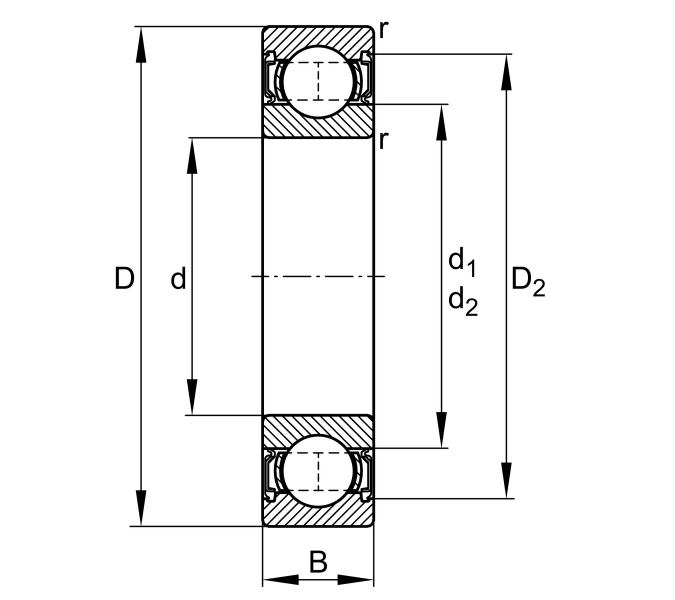

Main Dimensions & Performance Data
d
7 mm
Bore diameter
D
19 mm
Outside diameter
B
6 mm
Width
Cr
1,990 N
Basic dynamic load rating, radial
C0r
711 N
Basic static load rating, radial
Cur
30.5 N
Fatigue load limit, radial
CG
26,500 1/min
Limiting speed
≈m
8.24 g
Weight

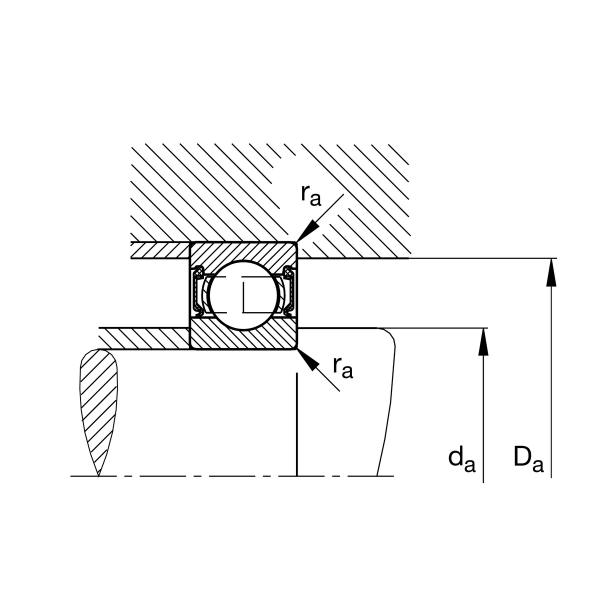

Mounting dimensions
da min
9 mm
Minimum diameter shaft shoulder
da min
17 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
