FAG S608-2Z>N

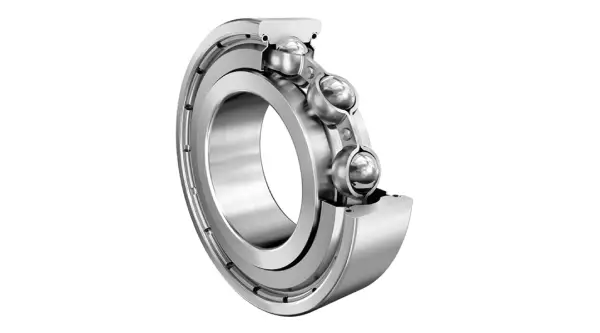

Deep groove ball bearing S60..-2Z, corrosion-resistant materials, single row, shields, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

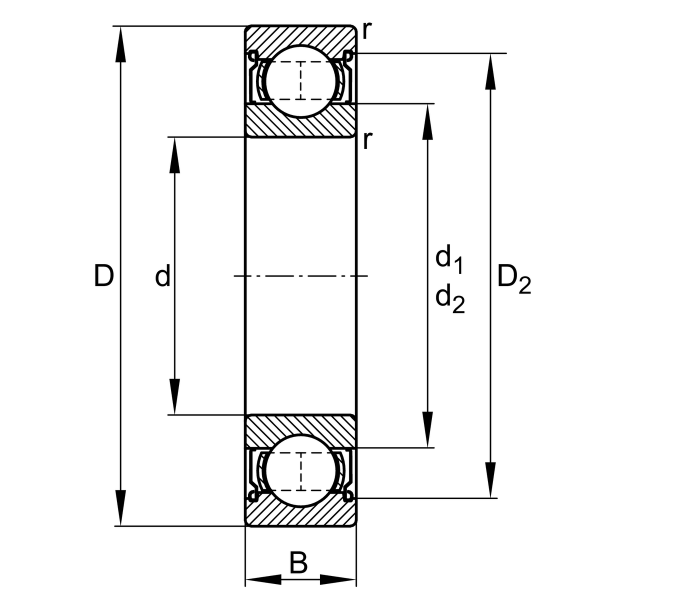

Main Dimensions & Performance Data
d
8 mm
Bore diameter
D
22 mm
Outside diameter
B
7 mm
Width
Cr
2,800 N
Basic dynamic load rating, radial
C0r
1,090 N
Basic static load rating, radial
Cur
41.5 N
Fatigue load limit, radial
CG
40,000 1/min
Limiting speed
nϑr
32,000 1/min
Reference speed
≈m
12.9 g
Weight

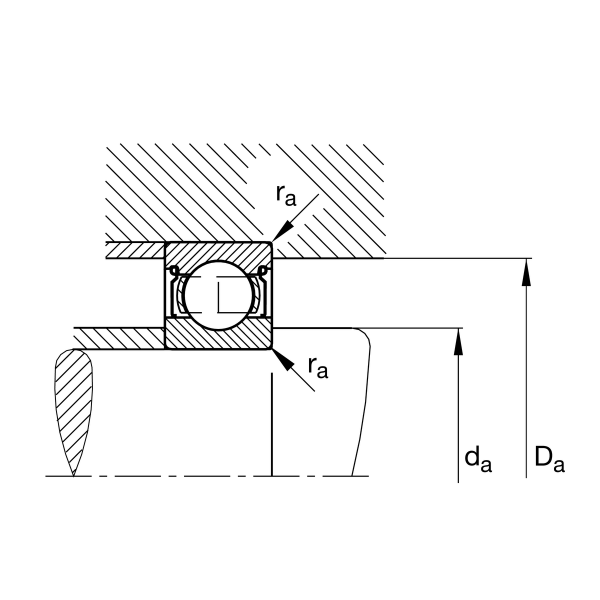

Mounting dimensions
da min
10 mm
Minimum diameter shaft shoulder
da min
20 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
