FAG S61800-2Z>N

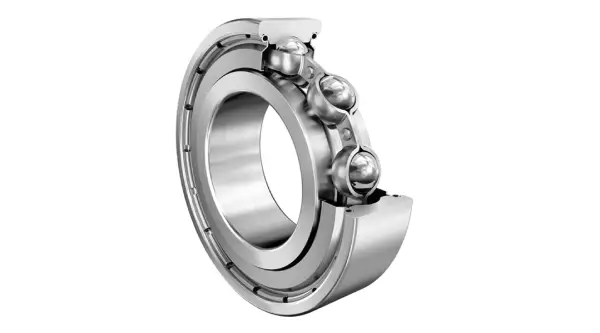

Deep groove ball bearing S618..-2Z, corrosion-resistant materials, single row, shields, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

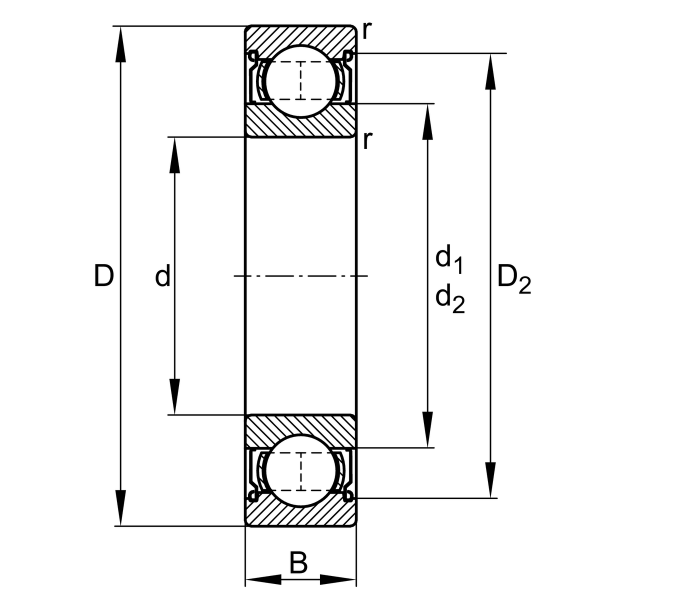

Main Dimensions & Performance Data
d
10 mm
Bore diameter
D
19 mm
Outside diameter
B
5 mm
Width
Cr
1,460 N
Basic dynamic load rating, radial
C0r
672 N
Basic static load rating, radial
Cur
58 N
Fatigue load limit, radial
CG
46,000 1/min
Limiting speed
≈m
5.6 g
Weight

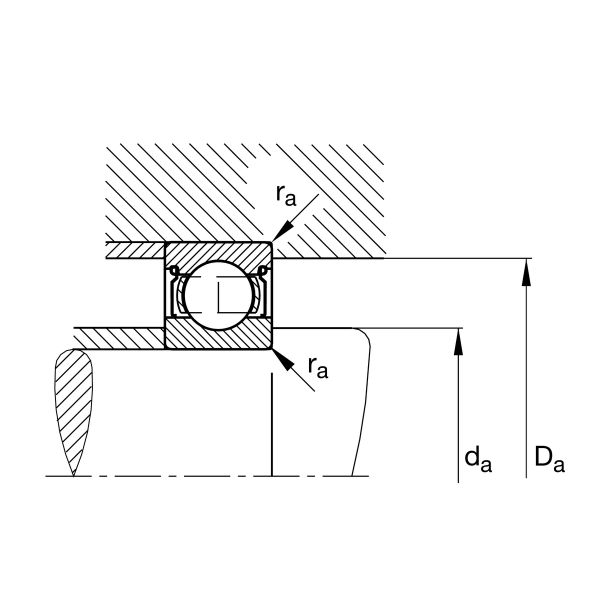

Mounting dimensions
da min
12 mm
Minimum diameter shaft shoulder
da min
17 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
