FAG S61802-2RSR>N
Deep groove ball bearing S618..-2RSR, corrosion-resistant materials, single row, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

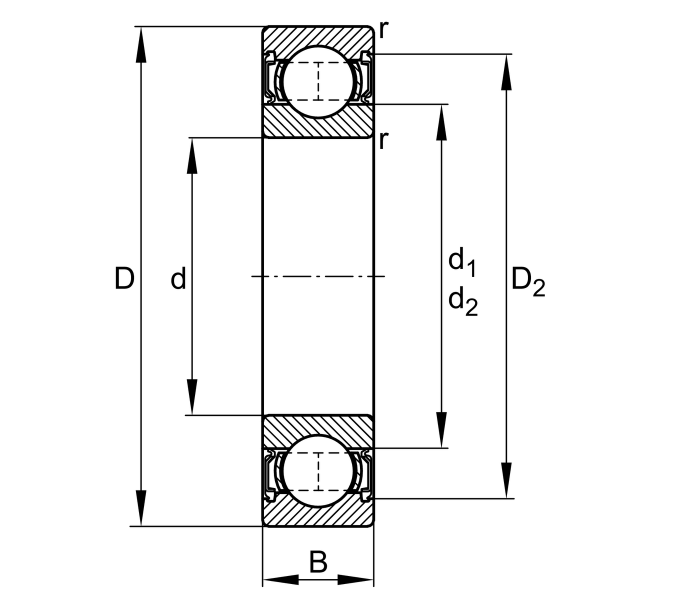

Main Dimensions & Performance Data
d
15 mm
Bore diameter
D
24 mm
Outside diameter
B
5 mm
Width
Cr
1,760 N
Basic dynamic load rating, radial
C0r
1,010 N
Basic static load rating, radial
Cur
57 N
Fatigue load limit, radial
CG
15,000 1/min
Limiting speed
≈m
7.6 g
Weight
Mounting dimensions
da min
17 mm
Minimum diameter shaft shoulder
da min
22 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
