FAG S61902-2RSR>N

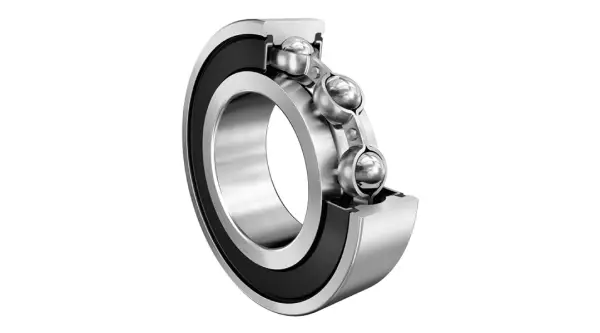

Deep groove ball bearing S619..-2RSR, corrosion-resistant materials, single row, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

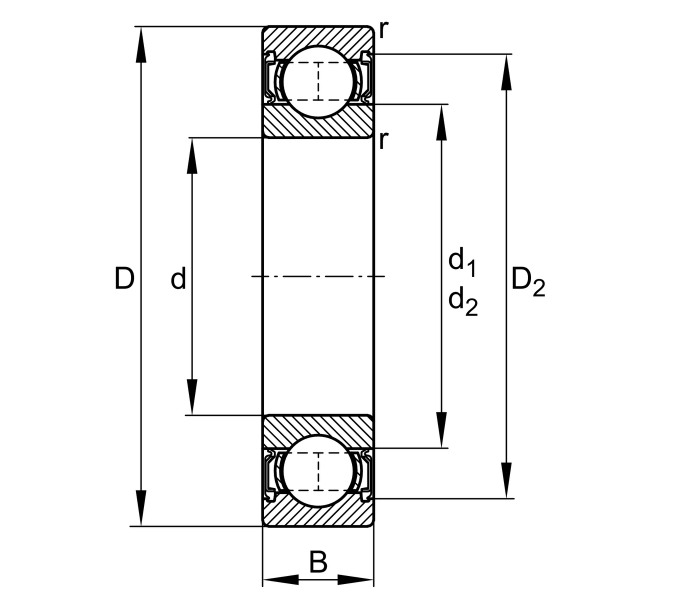

Main Dimensions & Performance Data
d
15 mm
Bore diameter
D
28 mm
Outside diameter
B
7 mm
Width
Cr
3,680 N
Basic dynamic load rating, radial
C0r
1,800 N
Basic static load rating, radial
Cur
132 N
Fatigue load limit, radial
CG
14,200 1/min
Limiting speed
≈m
18 g
Weight

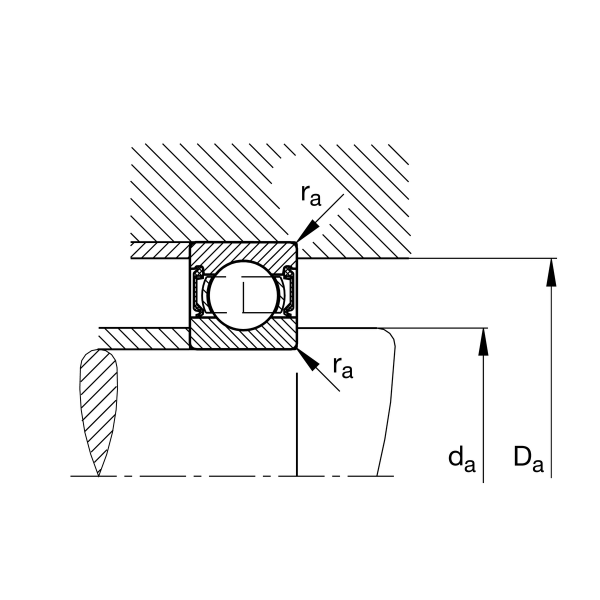

Mounting dimensions
da min
17 mm
Minimum diameter shaft shoulder
da min
26 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
