FAG UC216-51
Insert Ball Bearings and Belt Tension Pulleys
Radial insert ball bearings UC, spherical outer ring, location by grub screws, RSR seals on both sides
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

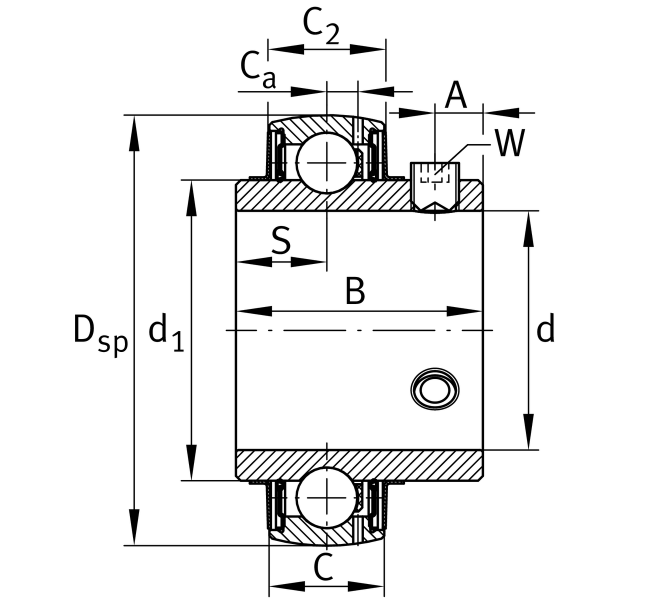

Main Dimensions & Performance Data
d
80.963 mm
Bore diameter
d
3.1875 in
Bore diameter, inch
DSP
140 mm
Outside diameter
B
82.6 mm
Width
Cur
2,700 N
Fatigue load limit, radial
Cr
76,000 N
Basic dynamic load rating, radial
C0r
54,000 N
Basic static load rating, radial
≈m
2.63 kg
Weight
