IKO NTB1831
Thrust Needle Roller Bearing, Metric
(BRAND)：IKO
(Availability)：In Stock
Order Number
NTB1831
Shaft Diameter
18
mm
Inside Diameter
18
mm
Outer Diameter
31
mm
Width
2
mm
Diameter
21
mm
Diameter
29
mm
Basic dynamic load rating
9550
N
Basic static load rating
34400
N
Mass
4.7
g
IKO NTB1831 Thrust Needle Roller Bearing Introduction
What is the NTB1831 bearing?
The NTB1831 is an IKO thrust needle roller bearing in the metric Thrust Bearings series. It is categorized under Brand > IKO > Thrust Bearings and is made of steel.

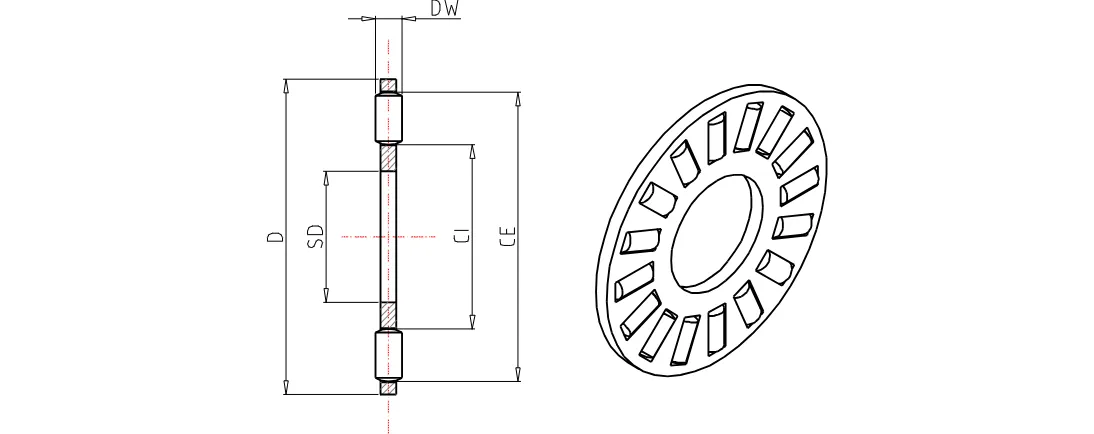

NTB1831 Dimensions and Specifications
What dimensions and mass are listed for this bearing?
The supplied product data lists the following specifications for the NTB1831:
- Shaft diameter: 18 mm
- Inside diameter: 18 mm
- Outer diameter: 31 mm
- Width: 2 mm
- Diameter: 21 mm
- Diameter: 29 mm
- Mass: 4.7 g
NTB1831 Load Rating Details
What basic load ratings are provided for the NTB1831?
The bearing data provides the following load ratings:
- Basic dynamic load rating: 9550 N
- Basic static load rating: 34400 N
Use these listed values when checking the NTB1831 against your bearing requirements.
