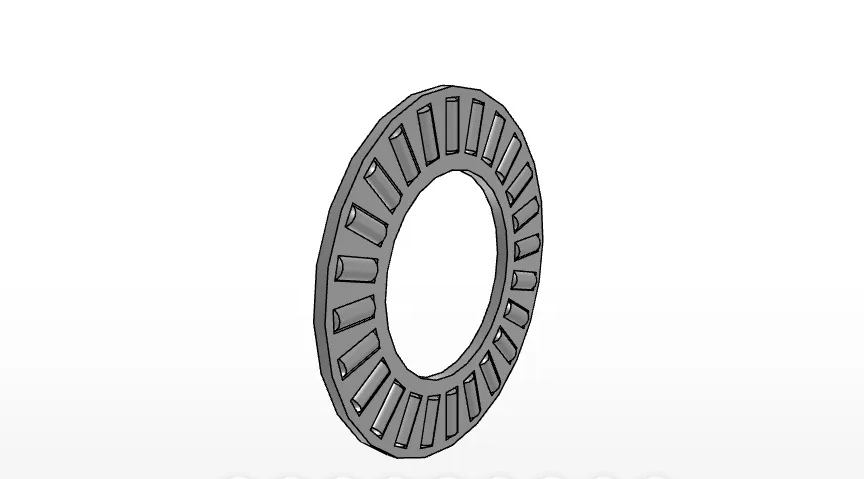

IKO NTB2035
Thrust Needle Roller Bearing, Metric
(BRAND)：IKO
(Availability)：In Stock
Order Number
NTB2035
Shaft Diameter
20
mm
Inside Diameter
20
mm
Outer Diameter
35
mm
Width
2
mm
Diameter
23
mm
Diameter
33
mm
Basic dynamic load rating
11700
N
Basic static load rating
46500
N
Mass
6.1
g
IKO NTB2035 Metric Thrust Needle Roller Bearing
What is the IKO NTB2035?
The IKO NTB2035 is a metric thrust needle roller bearing in the IKO Thrust Bearings product series. It is listed under the category path Brand > IKO > Thrust Bearings.

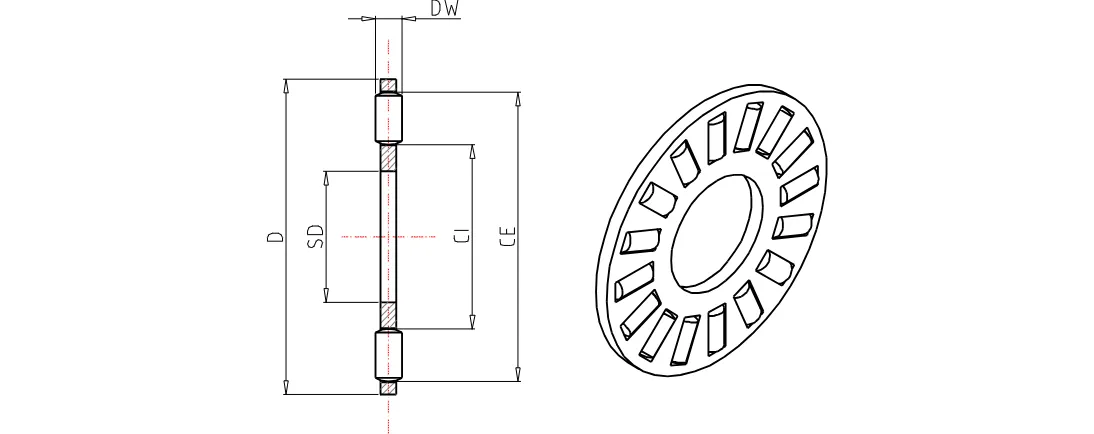

NTB2035 Dimensions and Construction
What dimensions and material are specified for the NTB2035?
The supplied product data identifies the bearing as a steel metric thrust bearing with the following dimensions:
- Shaft diameter: 20 mm
- Inside diameter: 20 mm
- Outer diameter: 35 mm
- Width: 2 mm
- Additional diameter values: 23 mm and 33 mm
- Mass: 6.1 g
NTB2035 Load Rating Data
What basic load ratings are provided for the NTB2035?
The product data lists the following basic load rating values:
- Basic dynamic load rating: 11700 N
- Basic static load rating: 46500 N
These values are provided as product specifications for the IKO NTB2035.
