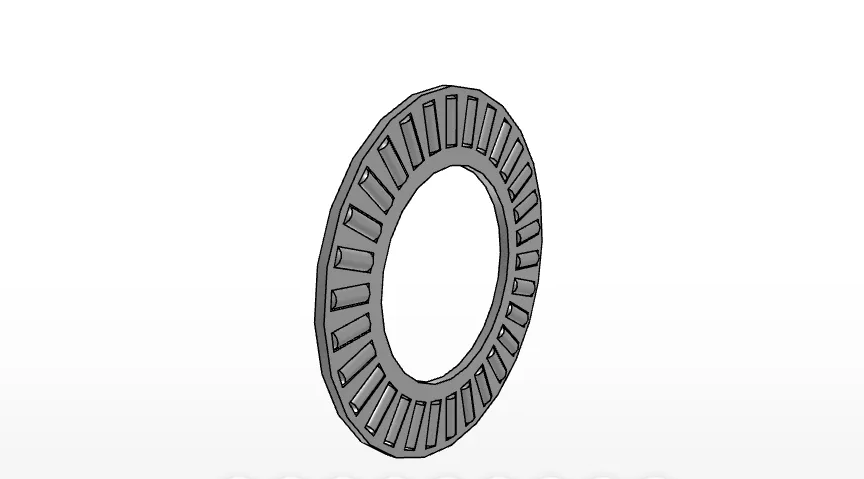

IKO NTB2542
Thrust Needle Roller Bearing, Metric
(BRAND)：IKO
(Availability)：In Stock
Order Number
NTB2542
Shaft Diameter
25
mm
Inside Diameter
25
mm
Outer Diameter
42
mm
Width
2
mm
Diameter
29
mm
Diameter
40
mm
Basic dynamic load rating
14400
N
Basic static load rating
64700
N
Mass
8.2
g
IKO NTB2542 Is a Metric Thrust Needle Roller Bearing
What type of bearing is the IKO NTB2542?
The IKO NTB2542 is listed in the Thrust Bearings product series and is described as a Thrust Needle Roller Bearing, Metric. The listed category path is Brand > IKO > Thrust Bearings.
- Brand: IKO
- Model/order number: NTB2542
- Bearing type: Thrust Bearings
- Bearing material: Steel
NTB2542 Provides the Listed Metric Dimensions and Mass

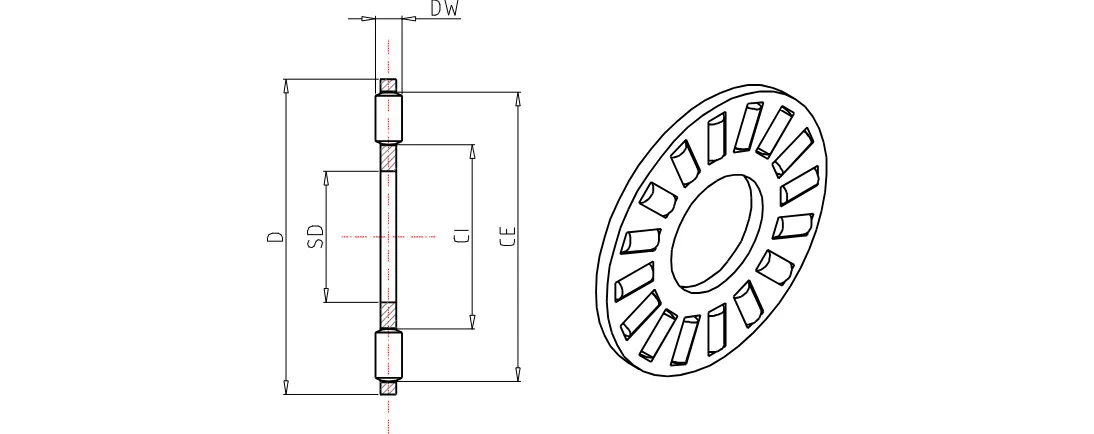

What dimensions are provided for the NTB2542?
The supplied product data identifies the following metric measurements and mass for the NTB2542:
- Shaft diameter: 25 mm
- Inside diameter: 25 mm
- Outer diameter: 42 mm
- Width: 2 mm
- Diameter values: 29 mm and 40 mm
- Mass: 8.2 g
NTB2542 Includes Supplied Basic Load Rating Data
What load rating information is available?
According to the supplied product data, the NTB2542 has a basic dynamic load rating of 14400 N and a basic static load rating of 64700 N. These values are presented as product specifications rather than application recommendations.
For selection or installation, use the listed model number, steel bearing material, metric dimensions, mass, and load-rating figures against the requirements of the intended arrangement.
