IKO NTB85110
Thrust Needle Roller Bearing, Metric
IKO NTB85110 Thrust Needle Roller Bearing Overview
The NTB85110 is an IKO thrust bearing in the Thrust Bearings product series. The product is identified as a metric thrust needle roller bearing and is constructed from steel.
What type of bearing is the NTB85110?
The supplied data identifies the NTB85110 as a Thrust Needle Roller Bearing, Metric. Its listed bearing type is Thrust Bearings and its brand is IKO.

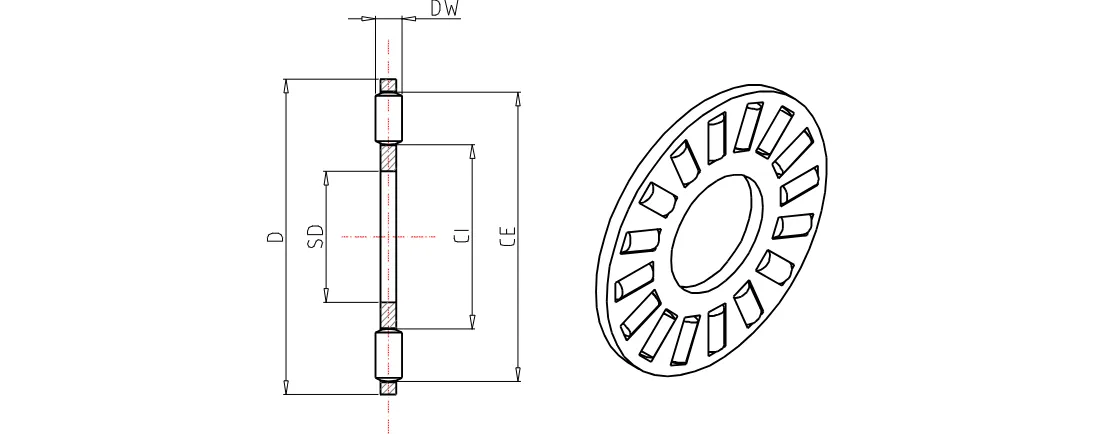

NTB85110 Dimensions and Product Data
- Order Number: NTB85110
- Shaft Diameter: 85 mm
- Inside Diameter: 85 mm
- Outer Diameter: 110 mm
- Width: 4 mm
- Diameter Values: 90 mm and 106 mm
- Mass: 72.0 g
What are the bore, outside diameter, and width?
According to the product data, the NTB85110 has an 85 mm shaft and inside diameter, a 110 mm outer diameter, and a 4 mm width.
NTB85110 Load Ratings and Material
The steel IKO NTB85110 includes listed basic load-rating values for selection and comparison. The supplied data records a basic dynamic load rating of 50300 N and a basic static load rating of 279000 N.
What load ratings and material are listed for this bearing?
The bearing material is listed as steel. The basic dynamic load rating is 50300 N, and the basic static load rating is 279000 N.
