IKO TRU355630UU
Roller Bearings, Cage Type, High Carbon Steel, Oil Hole, With Seals
TRU355630UU IKO Roller Bearing Overview
The TRU355630UU is an IKO roller bearing in the Roller Bearings series. It is supplied as a cage-type bearing with seals and an oil hole, and the listed bearing material is high carbon chrome steel.
What are the basic identifying details?
- Model: TRU355630UU
- Brand: IKO
- Product series: Roller Bearings
- Category path: Brand > IKO > Roller Bearings
- Internal structure: Cage Type

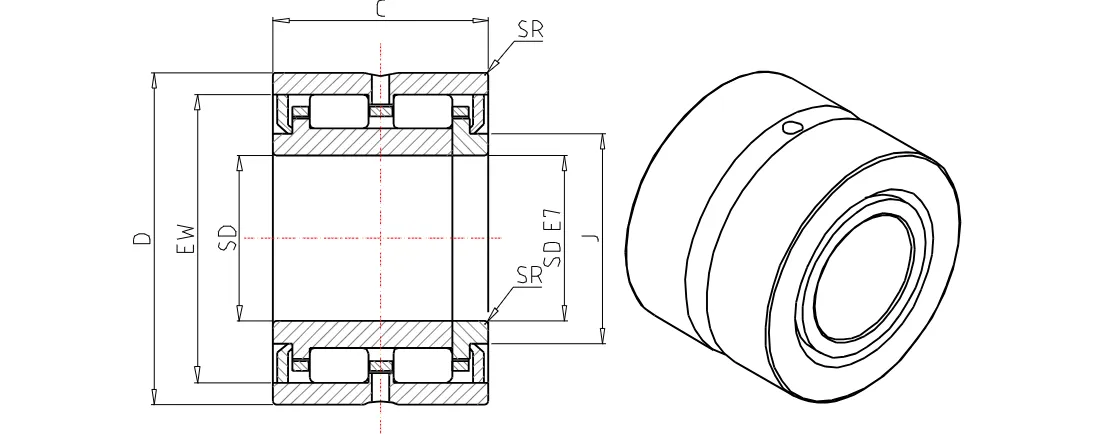

TRU355630UU Dimensions and Mass
The bearing data lists a shaft diameter and inside diameter of 35 mm, an outer diameter of 56 mm, and a width of 30 mm. Additional supplied dimensions include an rs minimum of 0.6 mm, diameters of 40.0 mm and 49.0 mm, and a mass of 270.0 g.
What dimensions should be reviewed for fitment?
- Inside diameter: 35 mm
- Outer diameter: 56 mm
- Width: 30 mm
- rs minimum: 0.6 mm
- Additional listed diameters: 40.0 mm and 49.0 mm
TRU355630UU Construction and Load Data
The product information identifies the TRU355630UU as a cage-type roller bearing made from high carbon chrome steel, with seals and an oil hole included in the description. Its supplied basic load ratings are 32,200 N dynamic and 49,800 N static.
What material and load-rating information is provided?
The listed bearing material is high carbon chrome steel. The supplied basic dynamic load rating is 32,200 N, and the supplied basic static load rating is 49,800 N. These values are stated from the product data and should be checked against the required bearing specification.
