IKO WS100190
Inner Ring for Thrust Roller Bearing, Metric

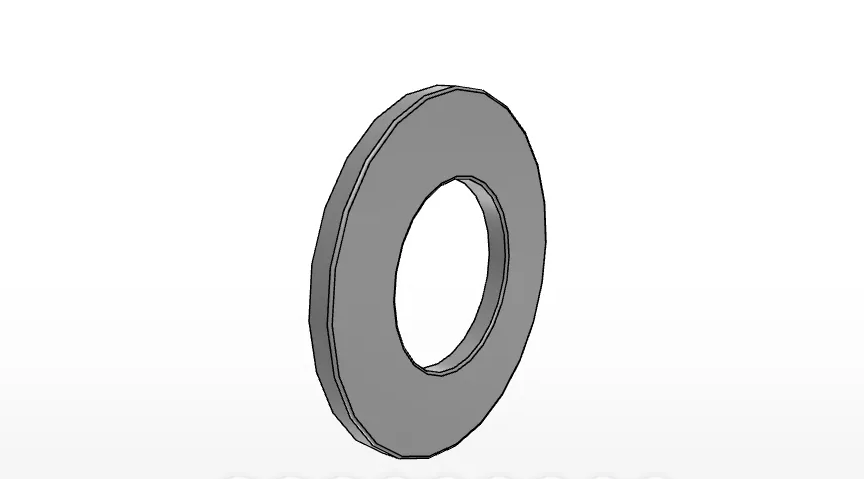

IKO WS100190 Inner Ring for Thrust Roller Bearings
The WS100190 is an IKO inner ring within the Thrust Bearings product series. It is designed as a metric inner ring for a thrust roller bearing and is listed under the category path Brand > IKO > Thrust Bearings.
What is the WS100190?
The WS100190 is a carbon steel inner ring intended for use as part of a thrust roller bearing arrangement. The supplied product data identifies it by order number WS100190.

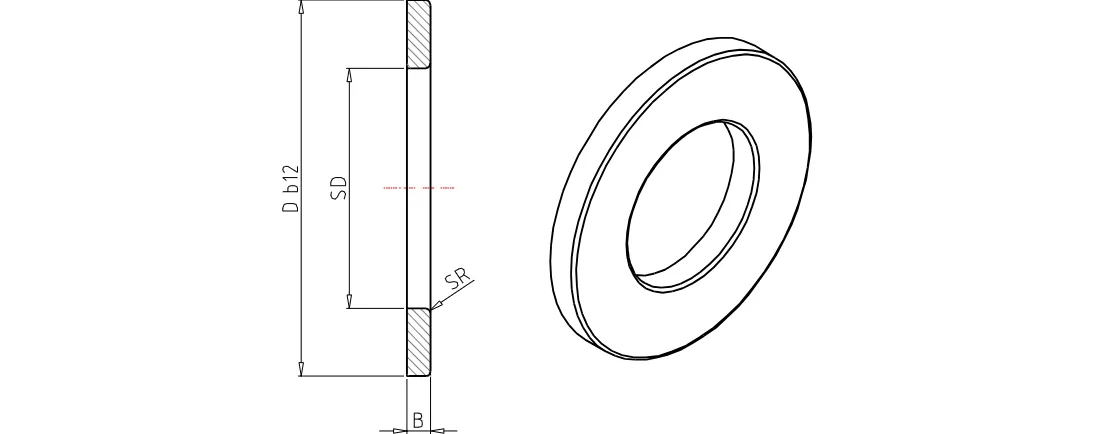

WS100190 Metric Dimensions and Product Specifications
The supplied dimensional data for the IKO WS100190 is listed below. These values can be used to compare the ring with the assembly or shaft requirements.
- Shaft diameter: 100 mm
- Inside diameter: 100 mm
- Outer diameter: 190 mm
- Width: 12.00 mm
- rs minimum: 1.5 mm
- Mass: 1920.0 g
What are the key dimensions of the WS100190?
The WS100190 has a 100 mm inside diameter, 190 mm outer diameter, and 12.00 mm width. The listed shaft diameter is 100 mm, the minimum fillet dimension is 1.5 mm, and the mass is 1920.0 g.
Carbon Steel Construction for the IKO Thrust Bearing Series
The product data identifies the bearing material as carbon steel and the bearing type as Thrust Bearings. No additional material grade, coating, load rating, certification, or application claim is provided in the supplied data.
What material and bearing type are listed for this component?
The WS100190 is listed under Thrust Bearings and its bearing material is specified as Carbon Steel. It should be selected based on compatibility with the intended thrust roller bearing assembly and the dimensions provided.
