IKO WS130170
Inner Ring for Thrust Roller Bearing, Metric
(BRAND)：IKO
(Availability)：In Stock
Order Number
WS130170
Shaft Diameter
130
mm
Inside Diameter
130
mm
Outer Diameter
170
mm
Width
9.00
mm
rs min.
1.0
mm
Mass
660.0
g

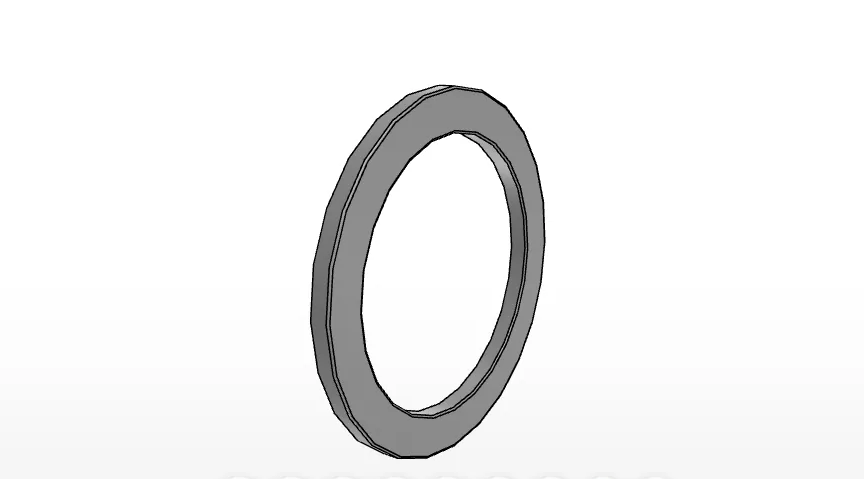

IKO WS130170 Is a Metric Inner Ring for Thrust Roller Bearings
What is the WS130170?
The WS130170 is an IKO inner ring intended for use in a thrust roller bearing arrangement. It is listed in the Thrust Bearings product series and is described as an inner ring for a thrust roller bearing, metric.
- Brand: IKO
- Order Number: WS130170
- Product Series: Thrust Bearings
- Category: Brand > IKO > Thrust Bearings

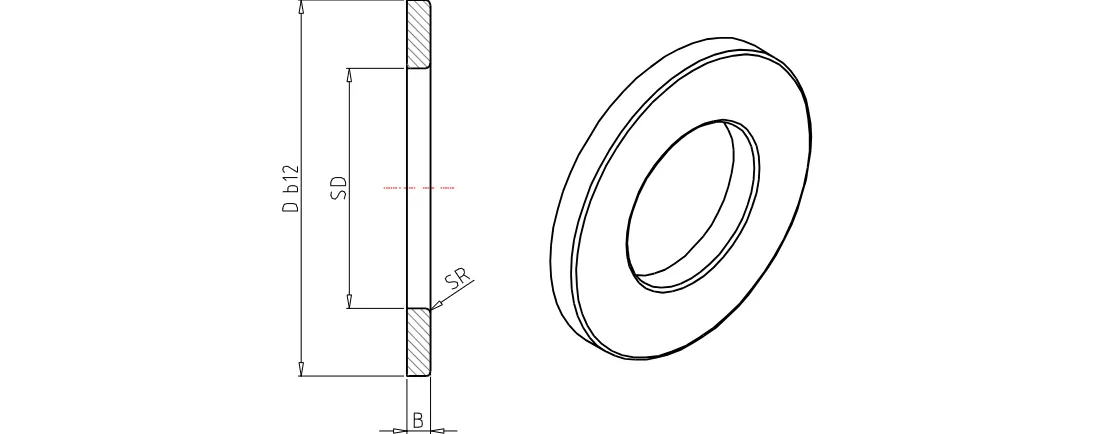

The WS130170 Provides Listed Metric Dimensions for Selection
What dimensions are provided for the WS130170?
The supplied product data lists the following dimensions for reference when identifying or selecting the inner ring:
- Shaft Diameter: 130 mm
- Inside Diameter: 130 mm
- Outer Diameter: 170 mm
- Width: 9.00 mm
- rs min.: 1.0 mm
- Mass: 660.0 g
The WS130170 Is Listed With Carbon Steel Bearing Material
What material and bearing type information is available?
According to the supplied data, the bearing material is listed as Carbon Steel, and the bearing type is listed as Thrust Bearings. Compatibility with a specific assembly should be checked against the mating thrust roller bearing components and required dimensions.
- Confirm the required 130 mm inside diameter.
- Verify the 170 mm outer diameter and 9.00 mm width for the intended arrangement.
- Review the listed 1.0 mm minimum rs dimension as part of component selection.
