IKO WS150190
Inner Ring for Thrust Roller Bearing, Metric
IKO WS150190 Thrust Bearing Inner Ring
The WS150190 is an IKO inner ring designed for use within the thrust bearings product series. It is described as an inner ring for a thrust roller bearing and is supplied in metric dimensions.
What bearing component is the WS150190?
The WS150190 is an inner ring for a thrust roller bearing. It is categorized under Brand > IKO > Thrust Bearings.

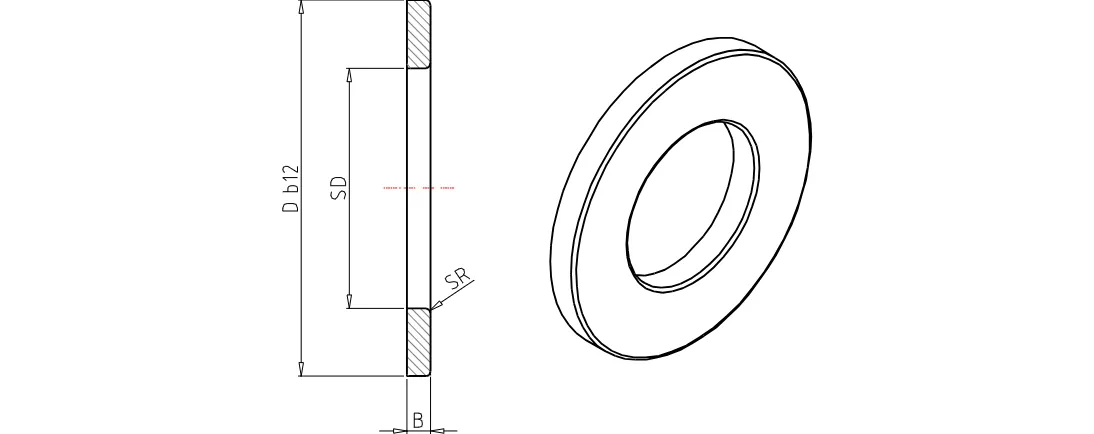

Metric Dimensions and Product Specifications
- Order number: WS150190
- Shaft diameter: 150 mm
- Inside diameter: 150 mm
- Outer diameter: 190 mm
- Width: 9.50 mm
- rs minimum: 1.0 mm
- Mass: 790.0 g
What are the WS150190 dimensions?
The listed metric dimensions are a 150 mm shaft and inside diameter, 190 mm outer diameter, and 9.50 mm width. The minimum fillet radius is 1.0 mm, and the stated mass is 790.0 g.
Carbon Steel Bearing Material
The structured product data identifies the bearing material as carbon steel. The component is associated with the IKO brand and the thrust bearings series.
What material is specified for the WS150190?
The supplied product data lists carbon steel as the bearing material. No additional material grade or certification details are provided in the available data.
