IKO WS1528
Inner Ring for Thrust Roller Bearing, Metric
(BRAND)：IKO
(Availability)：In Stock
Order Number
WS1528
Shaft Diameter
15
mm
Inside Diameter
15
mm
Outer Diameter
28
mm
Width
2.75
mm
rs min.
0.3
mm
Mass
9.3
g

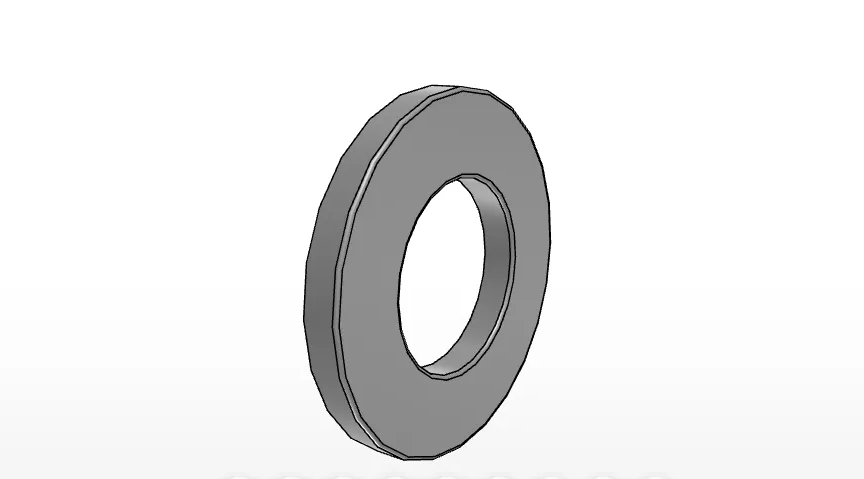

IKO WS1528 Inner Ring for Thrust Roller Bearings
What is the IKO WS1528?
The WS1528 is an IKO inner ring intended for use in a thrust roller bearing arrangement. It is classified within the IKO thrust bearings product line and is supplied as a metric inner ring.

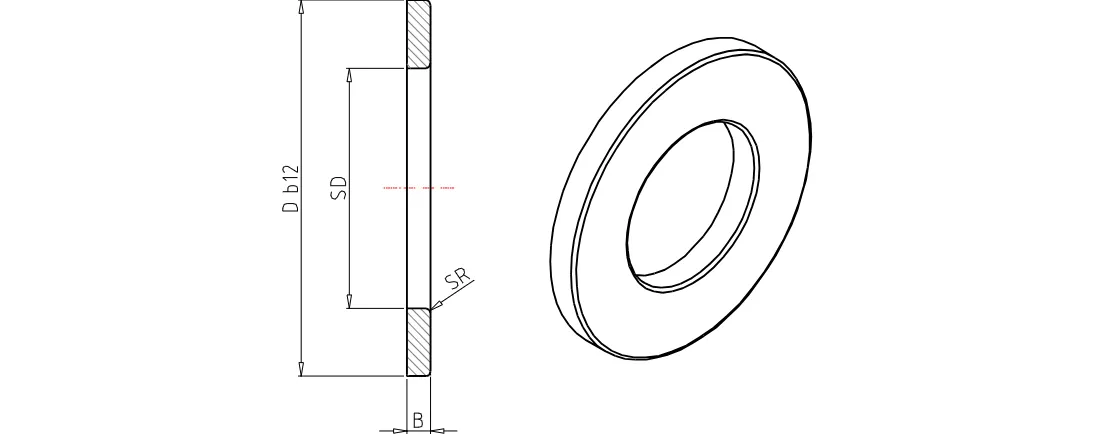

WS1528 Metric Dimensions and Product Data
What dimensions are listed for the WS1528?
The supplied product data identifies the following specifications:
- Order number: WS1528
- Shaft diameter: 15 mm
- Inside diameter: 15 mm
- Outer diameter: 28 mm
- Width: 2.75 mm
- rs min.: 0.3 mm
- Mass: 9.3 g
Carbon Steel Construction for Thrust Bearing Use
What material and bearing category apply to this component?
The listed bearing material is carbon steel, and the component is categorized as a thrust bearing. It is described as an inner ring for a thrust roller bearing rather than a complete bearing assembly.
