IKO WS180240
Inner Ring for Thrust Roller Bearing, Metric

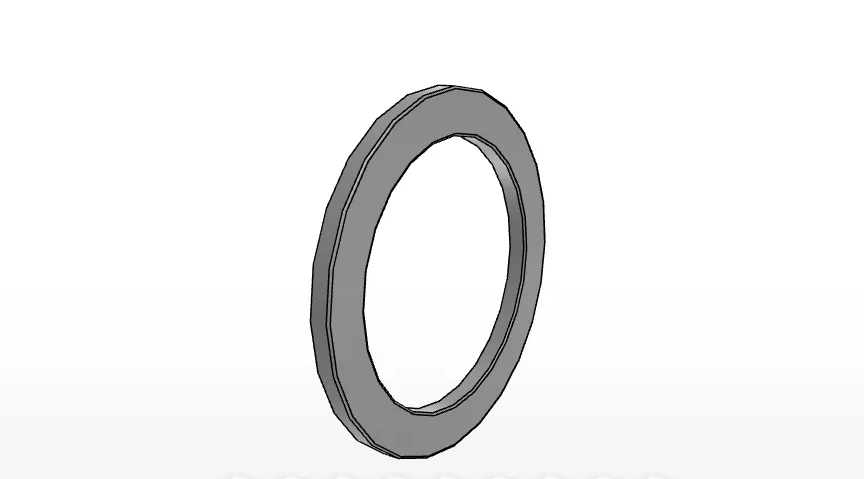

IKO WS180240 Thrust Bearing Inner Ring
The WS180240 is an IKO inner ring designed for use within the Thrust Bearings product series. It is identified by order number WS180240 and is categorized under Brand > IKO > Thrust Bearings.
What is the WS180240?
The WS180240 is a metric inner ring for a thrust roller bearing. It is intended to serve as a component within a compatible thrust bearing arrangement.
Metric Dimensions and Product Specifications
- Shaft diameter: 180 mm
- Inside diameter: 180 mm
- Outer diameter: 240 mm
- Width: 13.00 mm
- rs min.: 1.5 mm
- Mass: 2000.0 g

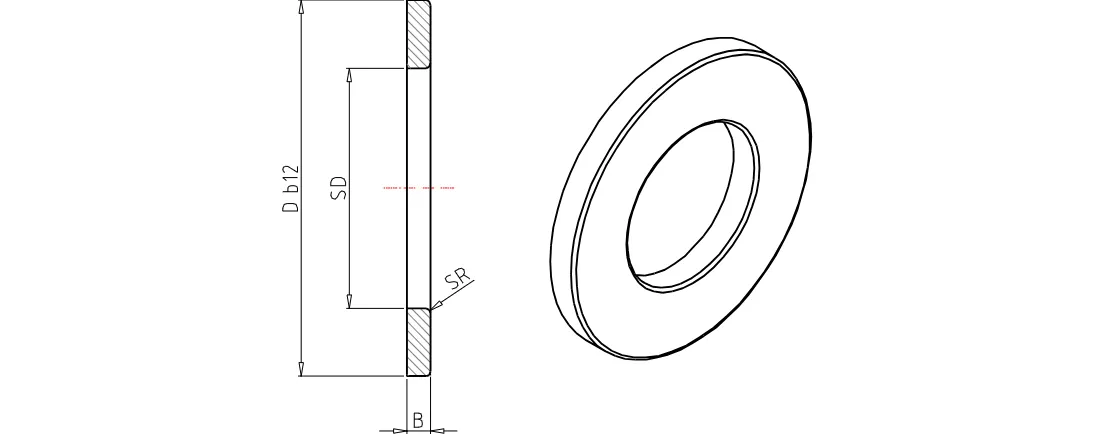

What are the WS180240 dimensions?
The inner ring has an inside diameter of 180 mm, an outer diameter of 240 mm, and a width of 13.00 mm. Its minimum chamfer dimension, rs min., is 1.5 mm.
Carbon Steel Construction Details
The listed bearing material for the WS180240 is carbon steel. The component is supplied as an inner ring within the IKO thrust bearings range and has a recorded mass of 2000.0 g.
What material is specified for the WS180240?
The product data lists carbon steel as the bearing material. Compatibility should be checked against the mating thrust roller bearing assembly and required component dimensions.
