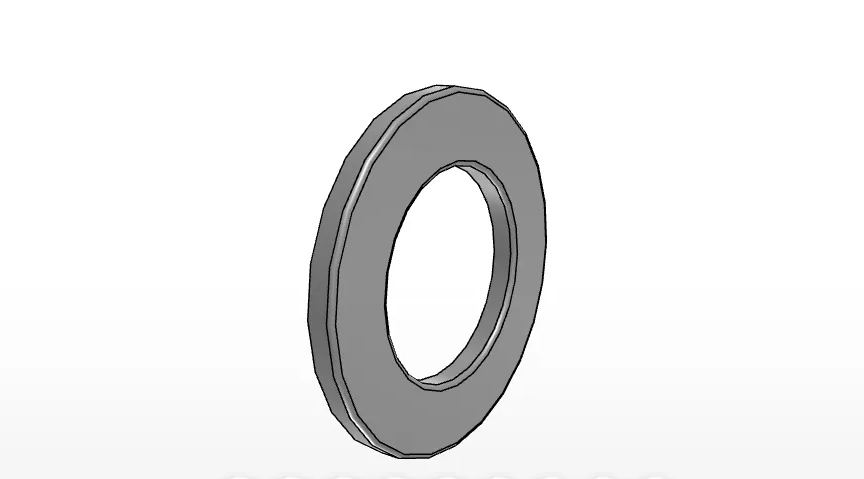

IKO WS2542
Inner Ring for Thrust Roller Bearing, Metric
(BRAND)：IKO
(Availability)：In Stock
Order Number
WS2542
Shaft Diameter
25
mm
Inside Diameter
25
mm
Outer Diameter
42
mm
Width
3.00
mm
rs min.
0.6
mm
Mass
21.0
g
IKO WS2542 Thrust Bearing Inner Ring
What is the WS2542?
The WS2542 is an IKO inner ring designed for use within the Thrust Bearings product series. It is described as an inner ring for a thrust roller bearing and uses metric dimensions.

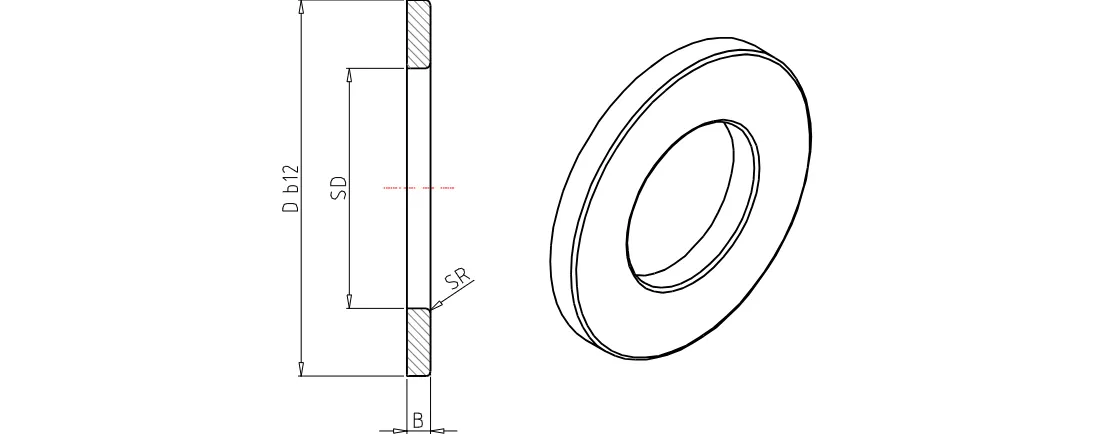

Metric Dimensions and Product Specifications
What dimensions are provided for the WS2542?
The supplied data lists the following specifications:
- Order Number: WS2542
- Shaft Diameter: 25 mm
- Inside Diameter: 25 mm
- Outer Diameter: 42 mm
- Width: 3.00 mm
- rs min.: 0.6 mm
- Mass: 21.0 g
Carbon Steel Bearing Component by IKO
What material and category information is available?
The WS2542 is categorized under Brand > IKO > Thrust Bearings. The supplied bearing material is carbon steel, and the bearing type is listed as Thrust Bearings.
