IKO WS4060
Inner Ring for Thrust Roller Bearing, Metric
(BRAND)：IKO
(Availability)：In Stock
Order Number
WS4060
Shaft Diameter
40
mm
Inside Diameter
40
mm
Outer Diameter
60
mm
Width
3.50
mm
rs min.
0.6
mm
Mass
42.5
g

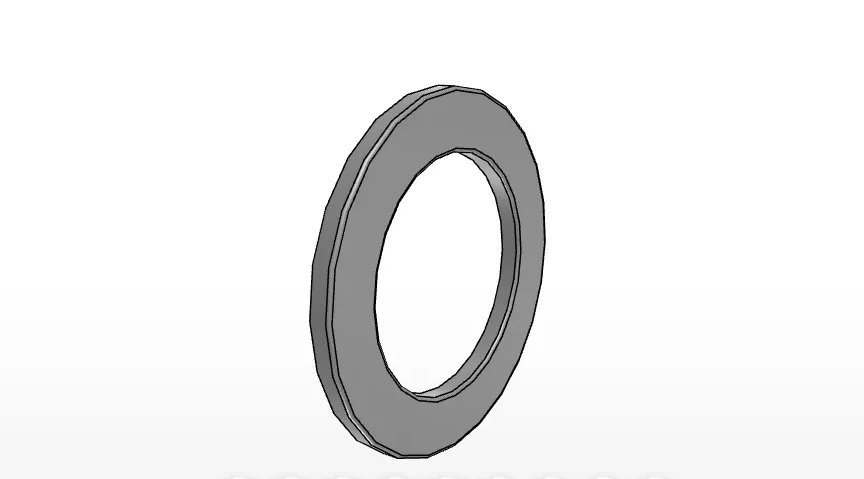

IKO WS4060 Metric Inner Ring for Thrust Roller Bearings
What is the WS4060?
The IKO WS4060 is an inner ring intended for use with a thrust roller bearing assembly. It is listed in the Thrust Bearings product series and has a metric design.

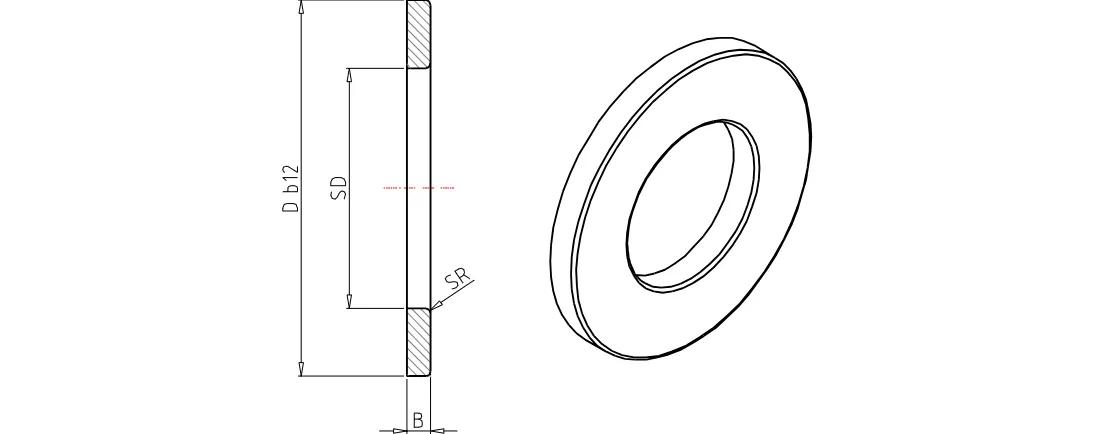

WS4060 Dimensions and Product Specifications
What dimensions and material are listed for the WS4060?
The supplied product data identifies the following specifications:
- Order number: WS4060
- Brand: IKO
- Bearing material: Carbon Steel
- Shaft diameter: 40 mm
- Inside diameter: 40 mm
- Outer diameter: 60 mm
- Width: 3.50 mm
- rs min.: 0.6 mm
- Mass: 42.5 g
WS4060 Product Identification Details
How can the listed bearing information be reviewed?
The product is categorized under Brand > IKO > Thrust Bearings. Use the order number WS4060 and the listed dimensions to confirm the item against the required bearing component specification.
- Verify the model or order number: WS4060.
- Check the bore and outside diameter: 40 mm × 60 mm.
- Confirm the width and material: 3.50 mm and carbon steel.
