IKO WS4068
Inner Ring for Thrust Roller Bearing, Metric
(BRAND)：IKO
(Availability)：In Stock
Order Number
WS4068
Shaft Diameter
40
mm
Inside Diameter
40
mm
Outer Diameter
68
mm
Width
5.00
mm
rs min.
1.0
mm
Mass
89.0
g
IKO WS4068 Inner Ring for Thrust Roller Bearings
What is the IKO WS4068?
The WS4068 is an inner ring manufactured by IKO for use with thrust roller bearings. It belongs to the IKO Thrust Bearings product series and is supplied in a metric configuration.
Metric Dimensions and Specifications

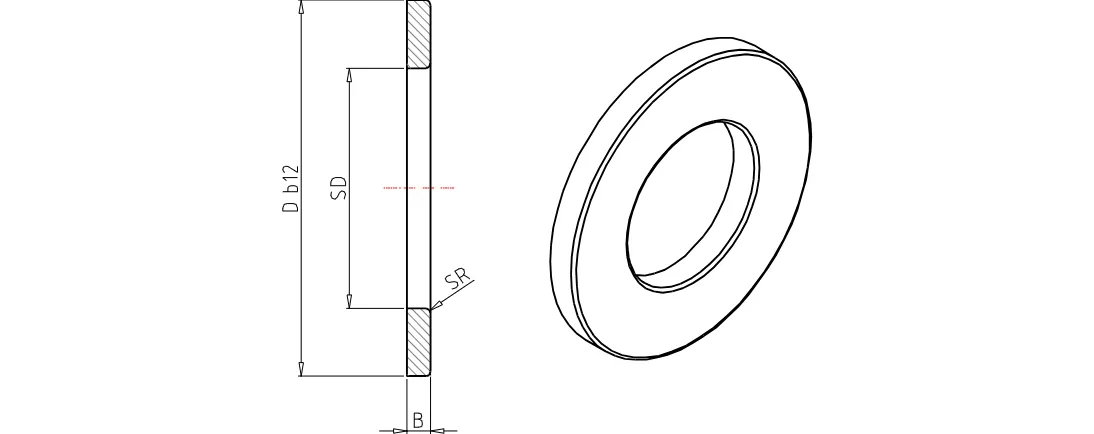

What are the dimensions of the WS4068?
The listed dimensions for the WS4068 inner ring are:
- Order number: WS4068
- Shaft diameter: 40 mm
- Inside diameter: 40 mm
- Outer diameter: 68 mm
- Width: 5.00 mm
- rs min.: 1.0 mm
- Mass: 89.0 g
Carbon Steel Thrust Bearing Component
What bearing material and type information is provided?
The supplied product data identifies the bearing type as Thrust Bearings and lists the bearing material as Carbon Steel. It is categorized under Brand > IKO > Thrust Bearings.
