IKO WS4565
Inner Ring for Thrust Roller Bearing, Metric
The IKO WS4565 Is a Metric Thrust Bearing Inner Ring
The WS4565 is an IKO inner ring designed for use with a thrust roller bearing arrangement. It belongs to the IKO Thrust Bearings product series and is listed under the Brand > IKO > Thrust Bearings category path.
What bearing component does the WS4565 represent?
The WS4565 is identified as an Inner Ring for Thrust Roller Bearing, Metric. It is intended to be considered as part of a matched thrust bearing setup rather than as a complete bearing by itself.
The WS4565 Provides Documented Metric Dimensions and Material
The supplied product data lists the ring as carbon steel and provides its principal dimensions for selection and comparison:
- Order number: WS4565
- Brand: IKO
- Bearing type: Thrust Bearings
- Bearing material: Carbon Steel
- Shaft diameter: 45 mm
- Inside diameter: 45 mm
- Outer diameter: 65 mm
- Width: 4.00 mm
- rs minimum: 0.6 mm
- Mass: 53.5 g
What are the WS4565 size specifications?

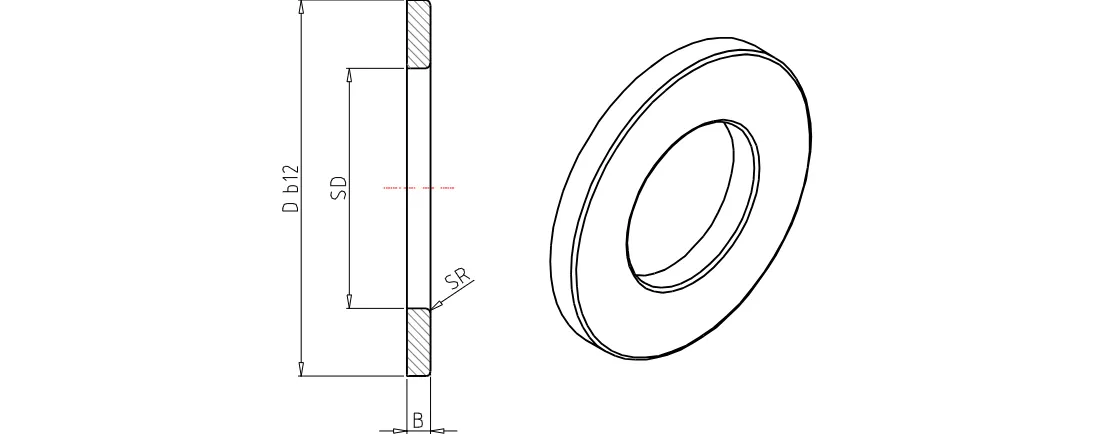

The WS4565 has a 45 mm inside diameter, a 65 mm outer diameter, and a 4.00 mm width. The specified shaft diameter is 45 mm, the minimum rs dimension is 0.6 mm, and the listed mass is 53.5 g.
The WS4565 Supports Straightforward Product Verification
Use the order number, dimensions, bearing type, and material to confirm that the IKO WS4565 matches the required thrust bearing inner ring specification. Details not included in the supplied product data should be checked against the relevant mating bearing component or manufacturer documentation.
How can the WS4565 be identified before ordering?
Confirm the order number WS4565, the IKO brand, the Thrust Bearings type, carbon steel material, and the metric dimensions of 45 mm inside diameter, 65 mm outer diameter, and 4.00 mm width. These facts are taken directly from the available product data.
