IKO WS60130
Inner Ring for Thrust Roller Bearing, Metric

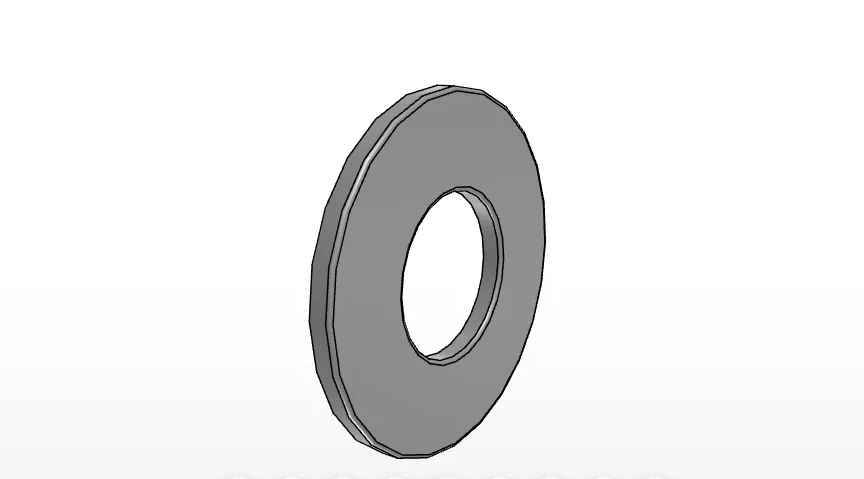

IKO WS60130 Thrust Bearing Inner Ring
The WS60130 is an IKO metric inner ring for a thrust roller bearing. It is part of the IKO Thrust Bearings series and is listed under Brand > IKO > Thrust Bearings.
What bearing component is the WS60130?
The supplied data identifies the WS60130 as an inner ring for a thrust roller bearing, with a metric design and the order number WS60130.

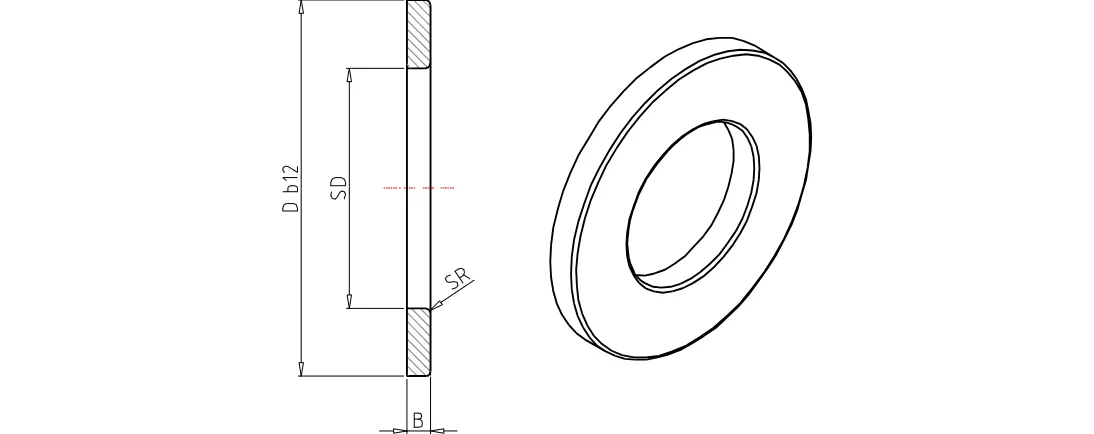

WS60130 Dimensions and Specifications
- Shaft diameter: 60 mm
- Inside diameter: 60 mm
- Outer diameter: 130 mm
- Width: 8.00 mm
- rs minimum: 1.5 mm
- Mass: 650.0 g
What are the WS60130 measurements?
The WS60130 has a 60 mm inside diameter, 130 mm outer diameter, 8.00 mm width, and a minimum chamfer dimension of 1.5 mm. Its listed mass is 650.0 g.
Carbon Steel Thrust Bearing Inner Ring
The product data lists the bearing material as carbon steel. The bearing type is identified as Thrust Bearings, and the component is presented as an inner ring for use within a thrust roller bearing arrangement.
What material and series information are provided?
The WS60130 is an IKO thrust bearing component made from carbon steel according to the supplied product data. No additional material grade, certification, or application details are provided.
