IKO WS6085
Inner Ring for Thrust Roller Bearing, Metric
(BRAND)：IKO
(Availability)：In Stock
Order Number
WS6085
Shaft Diameter
60
mm
Inside Diameter
60
mm
Outer Diameter
85
mm
Width
4.75
mm
rs min.
1.0
mm
Mass
105.0
g
The IKO WS6085 Is a Metric Inner Ring for Thrust Roller Bearings
What type of bearing component is the WS6085?
The IKO WS6085 is listed as an inner ring for a thrust roller bearing in the metric product series. Its supplied category path is Brand > IKO > Thrust Bearings.
- Model: WS6085
- Brand: IKO
- Series: Thrust Bearings
- Bearing type: Thrust Bearings

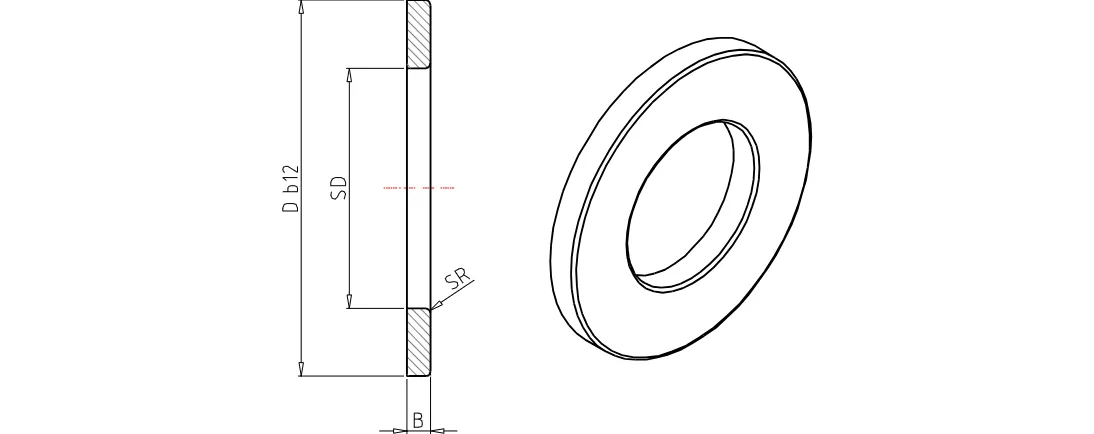

The WS6085 Has Documented Metric Dimensions and Mass
What dimensions are supplied for the WS6085?
The product data identifies the following measurements for the WS6085 inner ring:
- Shaft diameter: 60 mm
- Inside diameter: 60 mm
- Outer diameter: 85 mm
- Width: 4.75 mm
- rs min.: 1.0 mm
- Mass: 105.0 g
The WS6085 Is Listed With Carbon Steel Bearing Material
What material information is provided for the WS6085?
The supplied product data lists the bearing material as carbon steel. No additional material grade, certification, application, or compatibility claim is provided in the available data.
