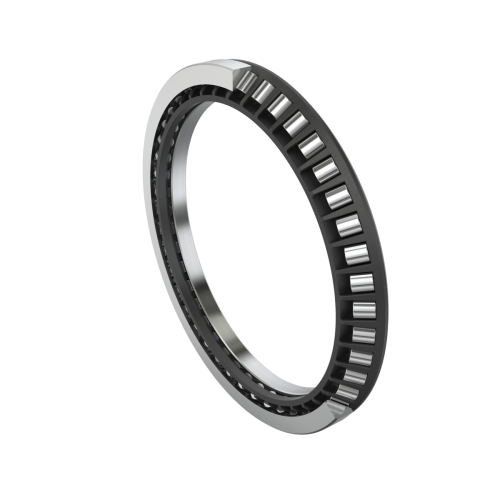

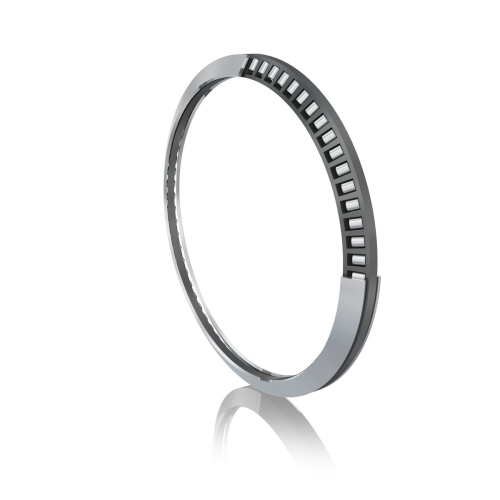

INA AXS115129
Axial-Angular Contact Roller Bearings
Axial angular contact roller bearing
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
115 mm
Bore diameter
D
129 mm
Outer diameter
H
5 mm
Height
max
0 mm
Tolerance height max.
min
-0.5 mm
Tolerance height min.
u03B1
60 °
Contact angle
ca
21,600 N
Basic dynamic load rating, axial
C0a
115,000 N
Basic dynamic load rating, axial
≈m
70 g
Weight
