INA AXS120134
Axial-Angular Contact Roller Bearings
Axial angular contact roller bearing
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

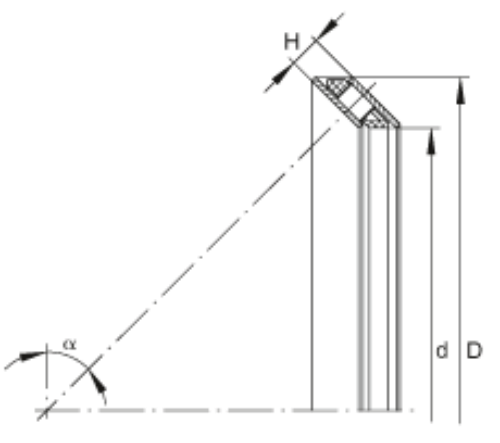

Main Dimensions & Performance Data
d
120 mm
Bore diameter
D
134 mm
Outer diameter
H
6 mm
Height
max
0 mm
Tolerance height max.
min
-0.5 mm
Tolerance height min.
u03B1
60 °
Contact angle
ca
31,500 N
Basic dynamic load rating, axial
C0a
152,000 N
Basic dynamic load rating, axial
≈m
82 g
Weight
