INA AXS140154
Axial-Angular Contact Roller Bearings

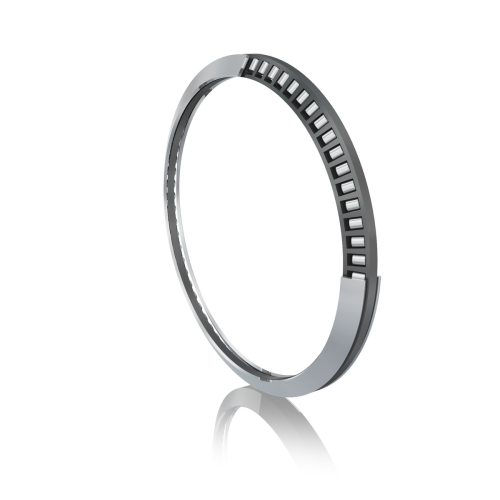

Axial angular contact roller bearing
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
140 mm
Bore diameter
D
154 mm
Outer diameter
H
6 mm
Height
max
0 mm
Tolerance height max.
min
-0.3 mm
Tolerance height min.
u03B1
60 °
Contact angle
ca
36,000 N
Basic dynamic load rating, axial
C0a
190,000 N
Basic dynamic load rating, axial
≈m
94 g
Weight
