INA AXS6074
Axial-Angular Contact Roller Bearings

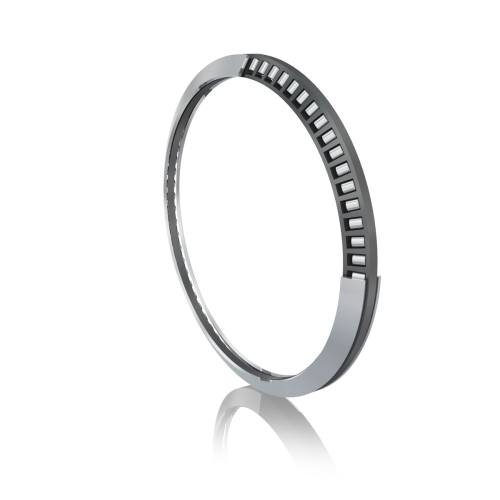

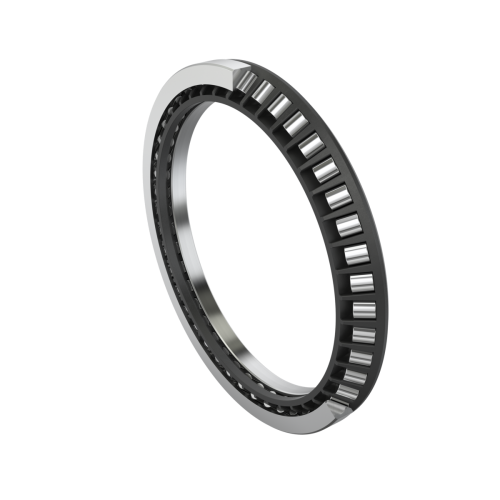

Axial angular contact roller bearing
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
60 mm
Bore diameter
D
74 mm
Outer diameter
H
5 mm
Height
max
0 mm
Tolerance height max.
min
-0.6 mm
Tolerance height min.
u03B1
60 °
Contact angle
ca
15,600 N
Basic dynamic load rating, axial
C0a
62,000 N
Basic dynamic load rating, axial
≈m
34.795 g
Weight
