INA BCE1416
Needle Roller Bearings
(BRAND)：INA
(Availability)：In Stock

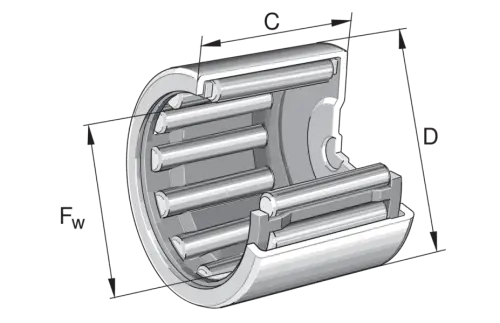

Main Dimensions & Performance Data
Fw
22.225 mm
Under roller diameter
D
28.575 mm
Outside diameter
C
25.4 mm
Width, outer ring
Cr
22,100 N
Basic dynamic load rating, radial
C0r
38,000 N
Basic static load rating, radial
CG
11,400 1/min
Limiting speed
≈m
38 g
Weight
