INA BK0709
Needle Roller Bearings

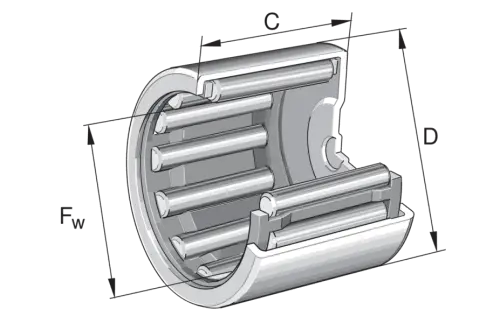

Drawn cup needle roller bearings with closed end BK, to DIN 618/ISO 3245
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

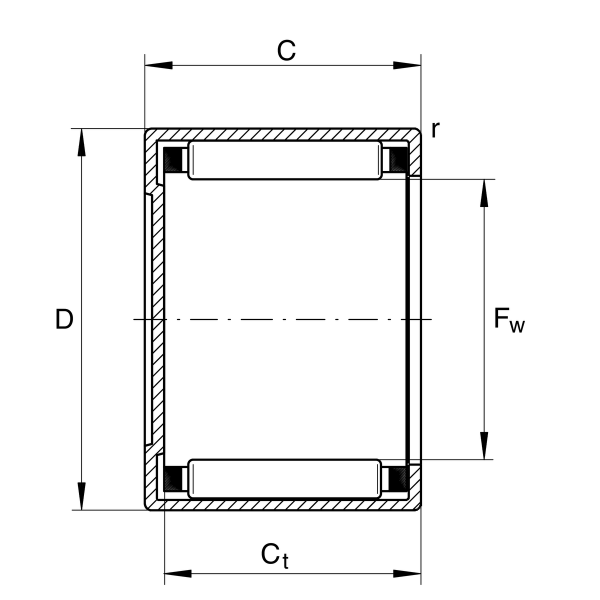

Main Dimensions & Performance Data
Fw
7 mm
Under roller diameter
D
11 mm
Outside diameter
C
9 mm
Width, outer ring
Cr
3,100 N
Basic dynamic load rating, radial
C0r
2,950 N
Basic static load rating, radial
Cur
360 N
Fatigue load limit, radial
nG Grease
19,800 1/min
Limiting speed for grease lubrication
CG
33,000 1/min
Limiting speed
nϑr
26,500 1/min
Reference speed
≈m
2.7 g
Weight
