INA BK0810
Needle Roller Bearings
Drawn cup needle roller bearings with closed end BK, to DIN 618/ISO 3245
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

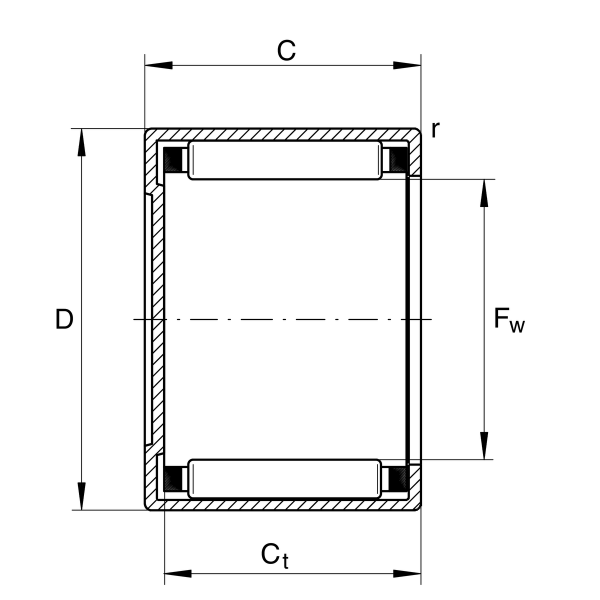

Main Dimensions & Performance Data
Fw
8 mm
Under roller diameter
D
12 mm
Outside diameter
C
10 mm
Width, outer ring
Cr
3,800 N
Basic dynamic load rating, radial
C0r
3,950 N
Basic static load rating, radial
Cur
510 N
Fatigue load limit, radial
nG Grease
17,700 1/min
Limiting speed for grease lubrication
CG
29,500 1/min
Limiting speed
nϑr
23,200 1/min
Reference speed
≈m
3.33 g
Weight
