INA BK1010
Needle Roller Bearings

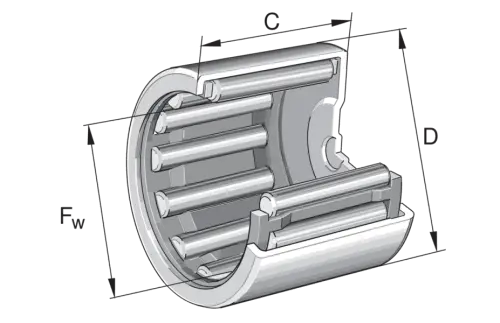

Drawn cup needle roller bearings with closed end BK, to DIN 618/ISO 3245
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

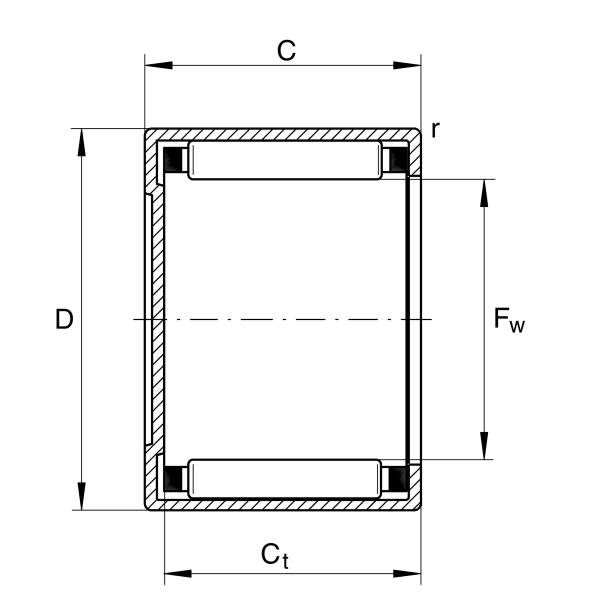

Main Dimensions & Performance Data
Fw
10 mm
Under roller diameter
D
14 mm
Outside diameter
C
10 mm
Width, outer ring
Cr
4,400 N
Basic dynamic load rating, radial
C0r
5,100 N
Basic static load rating, radial
Cur
670 N
Fatigue load limit, radial
nG Grease
14,600 1/min
Limiting speed for grease lubrication
CG
24,300 1/min
Limiting speed
nϑr
18,700 1/min
Reference speed
≈m
4.16 g
Weight
