INA BK1210
Needle Roller Bearings

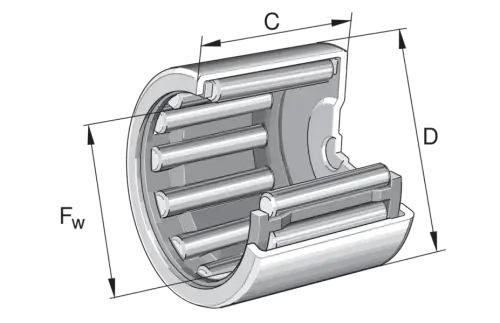

Drawn cup needle roller bearings with closed end BK, to DIN 618/ISO 3245
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

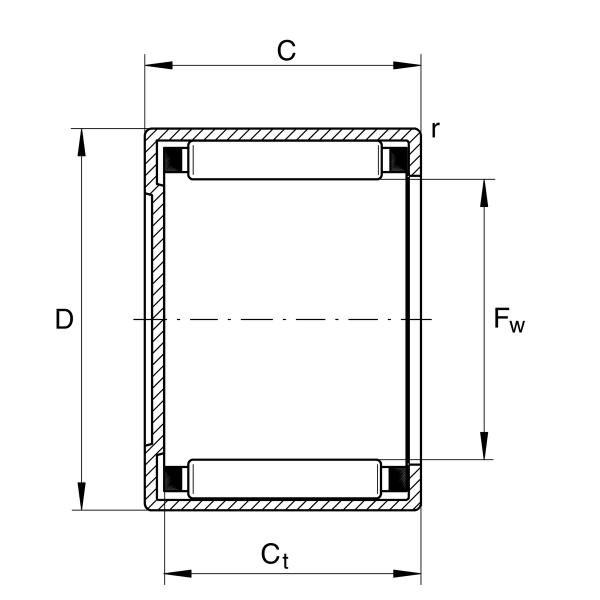

Main Dimensions & Performance Data
Fw
12 mm
Under roller diameter
D
16 mm
Outside diameter
C
10 mm
Width, outer ring
Cr
4,950 N
Basic dynamic load rating, radial
C0r
6,200 N
Basic static load rating, radial
Cur
820 N
Fatigue load limit, radial
nG Grease
12,400 1/min
Limiting speed for grease lubrication
CG
20,700 1/min
Limiting speed
nϑr
15,700 1/min
Reference speed
≈m
5.04 g
Weight
