INA BK3016
Needle Roller Bearings
Drawn cup needle roller bearings with closed end BK, to DIN 618/ISO 3245
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

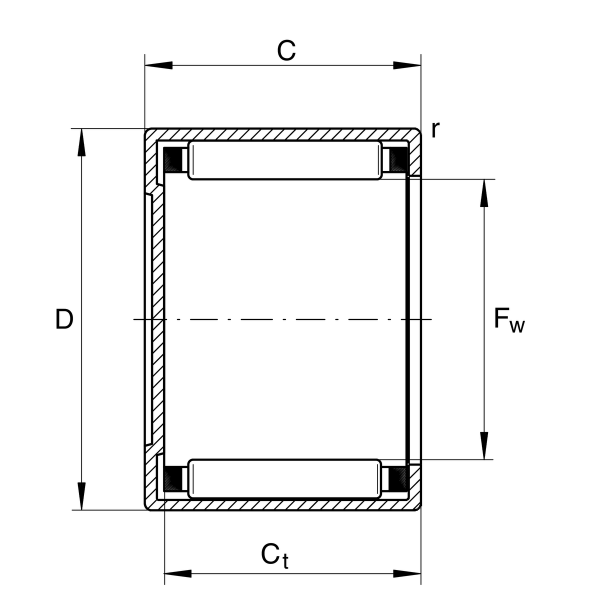

Main Dimensions & Performance Data
Fw
30 mm
Under roller diameter
D
37 mm
Outside diameter
C
16 mm
Width, outer ring
Cr
17,200 N
Basic dynamic load rating, radial
C0r
29,000 N
Basic static load rating, radial
Cur
3,850 N
Fatigue load limit, radial
nG Grease
5,200 1/min
Limiting speed for grease lubrication
CG
8,600 1/min
Limiting speed
nϑr
6,400 1/min
Reference speed
≈m
38 g
Weight
