INA C091108-A-JMSH/0-7-L581/STD
Needle Roller Bearings
Needle roller cage assembly
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

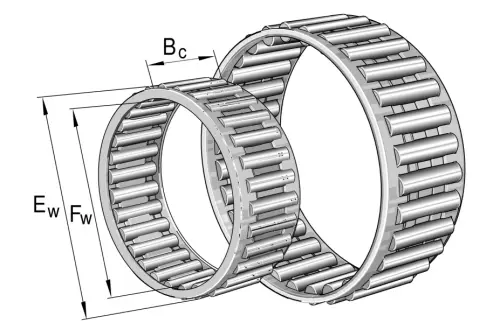

Main Dimensions & Performance Data
Fw
14.288 mm
Inner diameter of needle roller complement
Ew
17.463 mm
Outside diameter of needle roller complement
Bc
12.7 mm
Width
Cr
7,300 N
Basic dynamic load rating, radial
C0r
10,200 N
Basic static load rating, radial
CG
25,000 1/min
Limiting speed
≈m
2.6 g
Weight
