INA CSCB025
Thin Section Bearings
Deep groove ball bearing, Thin section bearing CSCB, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

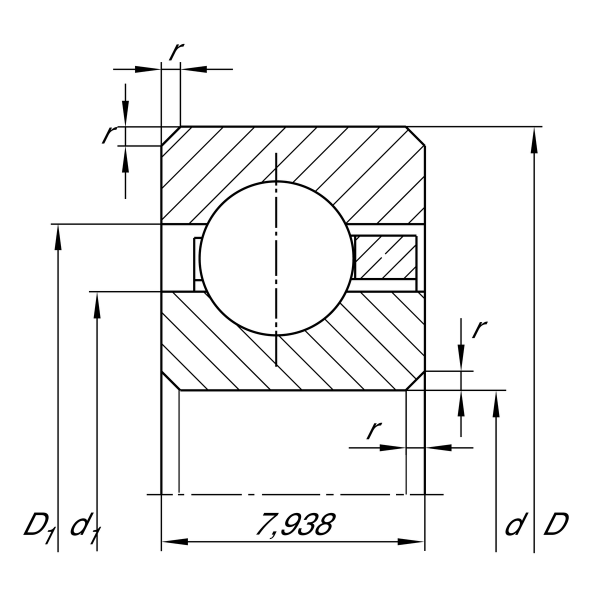

Main Dimensions & Performance Data
d
63.5 mm
Bore diameter
D
79.375 mm
Outside diameter
B
7.938 mm
Width
Cr
5,100 N
Basic dynamic load rating, radial
C0r
4,400 N
Basic static load rating, radial
CG
8,100 1/min
Limiting speed
≈m
90 g
Weight
