INA F-238166.SGL

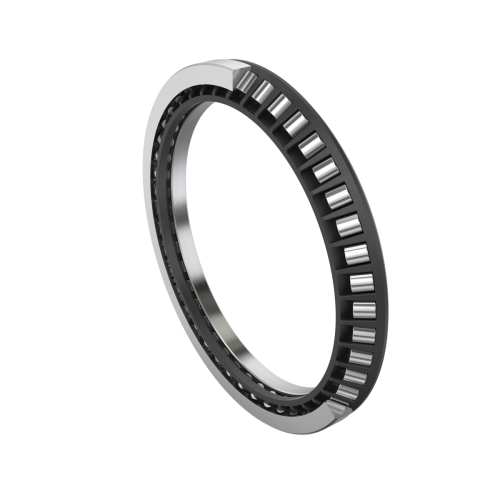

Axial-Angular Contact Roller Bearings
Angular contact roller bearing
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

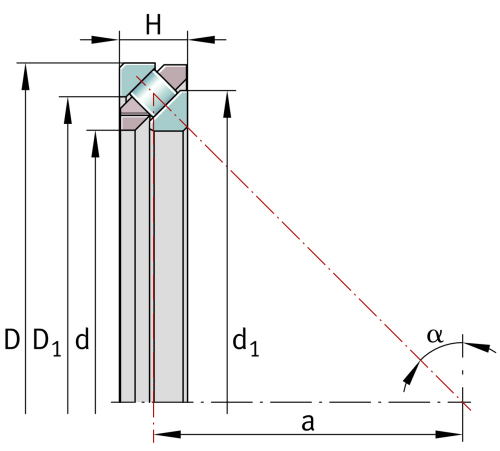

Main Dimensions & Performance Data
d
60 mm
Bore diameter inner ring
D
78 mm
Outside diameter
H
10 mm
Height
Cr
14,300 N
Basic dynamic load rating, radial
C0r
21,700 N
Basic static load rating, radial
Ca
34,500 N
Fatigue load limit, axial
Coa
109,000 N
Basic static load rating, axial
Cur
2,500 N
Fatigue limit load, radial
Cua
10,200 N
Fatigue load limit, axial
nG
1,100 1/min
Limiting speed
nϑr
3,200 1/min
Reference speed
≈m
85.2 g
Weight

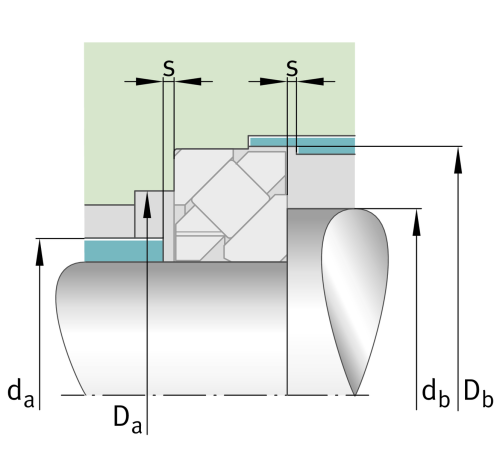

Mounting dimensions
Da
68 mm
Maximum diameter of housing shoulde
db
70 mm
Minimum shaft shoulder
Dbmin<
79 mm
Housing undercut for cage
s
1 mm
Minimum distance
