INA F-238167.SGL
Axial-Angular Contact Roller Bearings
Angular contact roller bearing
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

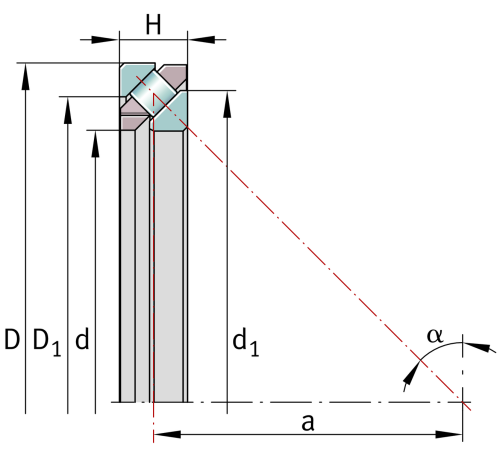

Main Dimensions & Performance Data
d
80 mm
Bore diameter inner ring
D
100 mm
Outside diameter
H
10 mm
Height
Cr
16,600 N
Basic dynamic load rating, radial
C0r
29,000 N
Basic static load rating, radial
Ca
40,000 N
Fatigue load limit, axial
Coa
144,000 N
Basic static load rating, axial
Cur
3,350 N
Fatigue limit load, radial
Cua
13,600 N
Fatigue load limit, axial
nG
850 1/min
Limiting speed
nϑr
2,500 1/min
Reference speed
≈m
0.123 kg
Weight

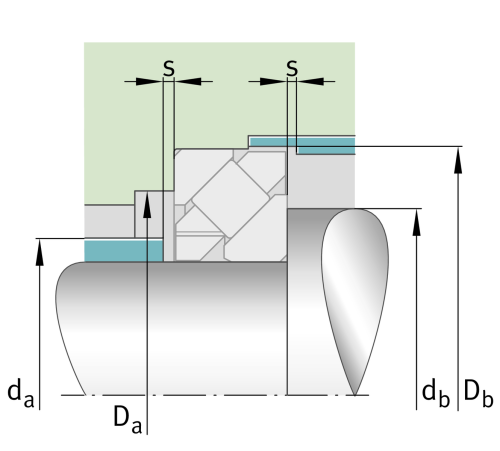

Mounting dimensions
Da
90 mm
Maximum diameter of housing shoulde
db
92 mm
Minimum shaft shoulder
Dbmin<
101 mm
Housing undercut for cage
s
1.5 mm
Minimum distance
