INA HF0612-R-RR
Drawn Cup Roller Clutch Without Bearing Arrangement
Drawn cup roller clutches HF..-R, with steel springs and knurled outer ring
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

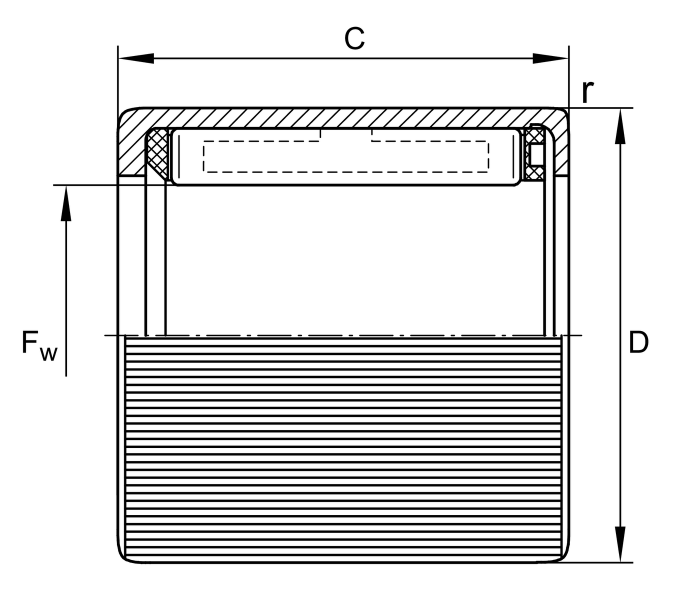

Main Dimensions & Performance Data
Fw
6 mm
Under roller diameter
D
10 mm
Outside diameter
C
12 mm
Width, outer ring
rmin
0.3 mm
Minimum chamfer dimension
Md per
0.6 Nm
Permissible torque
nGW
23,000 1/min
Limiting speed for rotating shaft
nGA
13,000 1/min
Limiting speed for rotating outer ring
≈m
3 g
Weight
