INA HK2220-AS1-B
Needle Roller Bearings

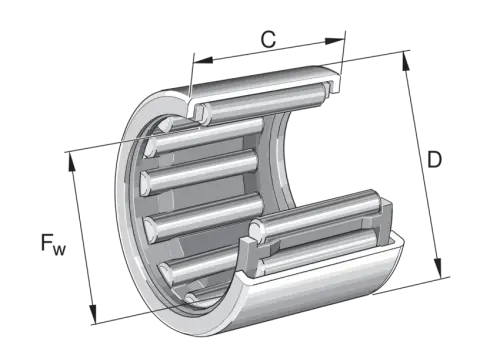

Drawn cup needle roller bearing open end HK..-AS1-B, single row, with cage
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
Fw
22 mm
Under roller diameter
D
28 mm
Outside diameter
C
20 mm
Width
Cr
16,500 N
Basic dynamic load rating, radial
C0r
29,000 N
Basic static load rating, radial
Cur
3,950 N
Fatigue load limit, radial
CG
11,700 1/min
Limiting speed
nG Grease
7,000 1/min
Limiting speed for grease lubrication
nϑr
8,500 1/min
Reference speed
≈m
25.481 g
Weight
