INA HK3020-AS1-B
Needle Roller Bearings

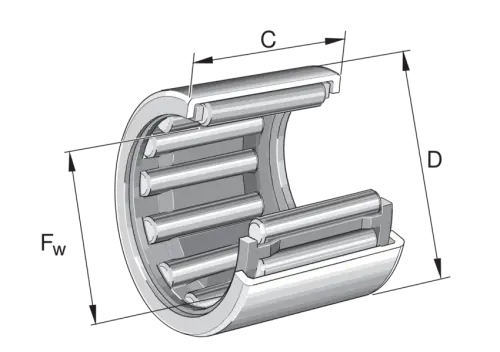

Drawn cup needle roller bearing open end HK..-AS1-B, single row, with cage
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
Fw
30 mm
Under roller diameter
D
37 mm
Outside diameter
C
20 mm
Width
Cr
22,000 N
Basic dynamic load rating, radial
C0r
39,500 N
Basic static load rating, radial
Cur
5,100 N
Fatigue load limit, radial
CG
8,600 1/min
Limiting speed
nG Grease
5,200 1/min
Limiting speed for grease lubrication
nϑr
6,300 1/min
Reference speed
≈m
38.975 g
Weight
