INA HK3224
Needle Roller Bearings

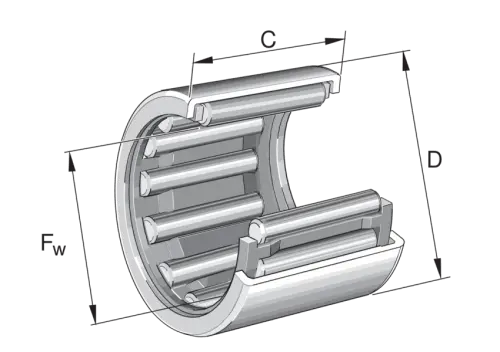

Drawn cup needle roller bearing open end HK, single row, with cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

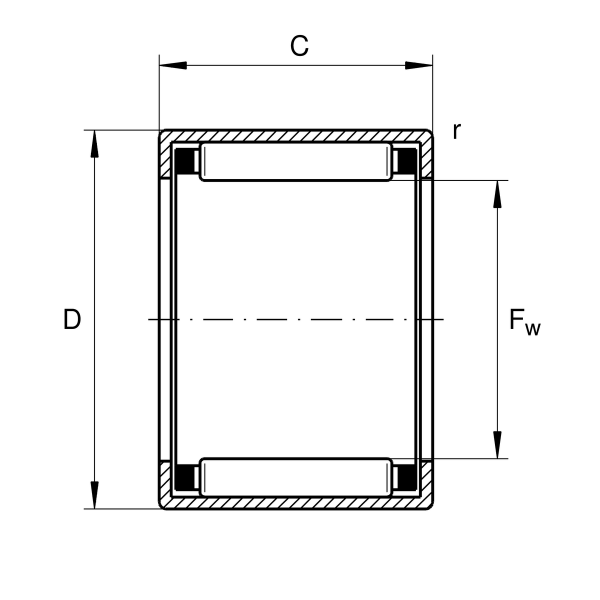

Main Dimensions & Performance Data
Fw
32 mm
Under roller diameter
D
39 mm
Outside diameter
C
24 mm
Width
Cr
27,500 N
Basic dynamic load rating, radial
C0r
54,000 N
Basic static load rating, radial
Cur
7,500 N
Fatigue load limit, radial
CG
8,100 1/min
Limiting speed
nG Grease
4,850 1/min
Limiting speed for grease lubrication
nϑr
5,900 1/min
Reference speed
≈m
49.895 g
Weight
