INA HK3520
Needle Roller Bearings

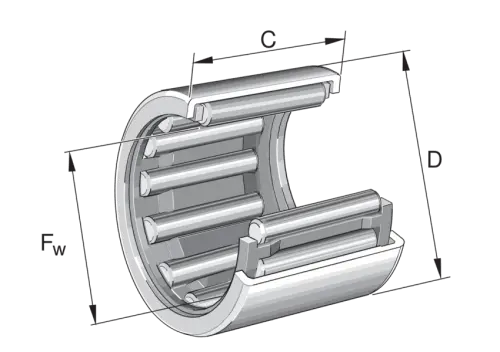

Drawn cup needle roller bearings with open ends HK, to DIN 618/ISO 3245
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

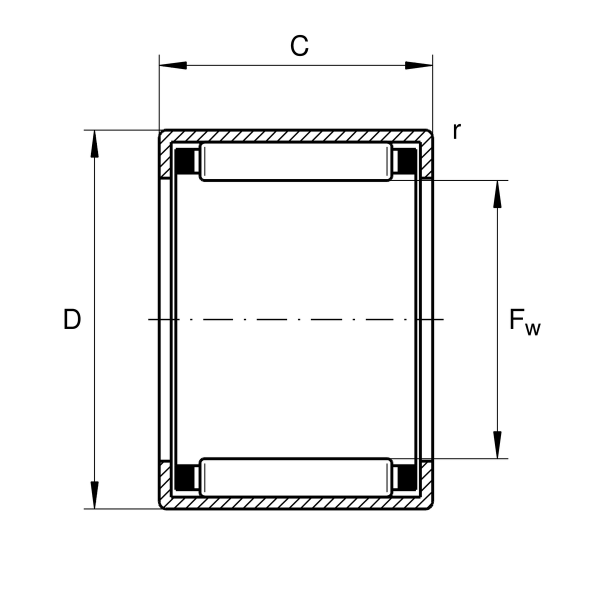

Main Dimensions & Performance Data
Fw
35 mm
Under roller diameter
D
42 mm
Outside diameter
C
20 mm
Width
Cr
23,800 N
Basic dynamic load rating, radial
C0r
46,000 N
Basic static load rating, radial
Cur
6,000 N
Fatigue load limit, radial
CG
7,500 1/min
Limiting speed
nG Grease
4,500 1/min
Limiting speed for grease lubrication
nϑr
5,500 1/min
Reference speed
≈m
43.724 g
Weight
