INA HN1412
Needle Roller Bearings

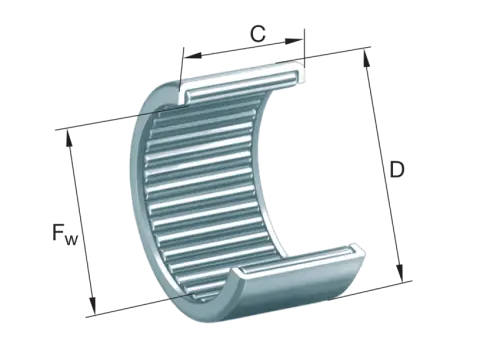

Drawn cup needle roller bearings with open ends HN, full complement needle roller set
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
Fw
14 mm
Under roller diameter
D
20 mm
Outside diameter
C
12 mm
Width, outer ring
Cr
11,000 N
Basic dynamic load rating, radial
C0r
17,500 N
Basic static load rating, radial
Cur
2,300 N
Fatigue load limit, radial
nG Grease
7,500 1/min
Limiting speed for grease lubrication
nϑr
10,400 1/min
Reference speed
≈m
12 g
Weight
