INA HN1516
Needle Roller Bearings

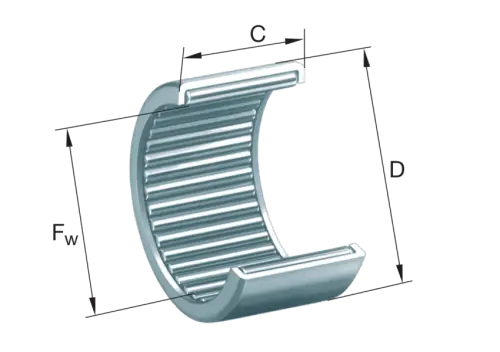

Drawn cup needle roller bearings with open ends HN, full complement needle roller set
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

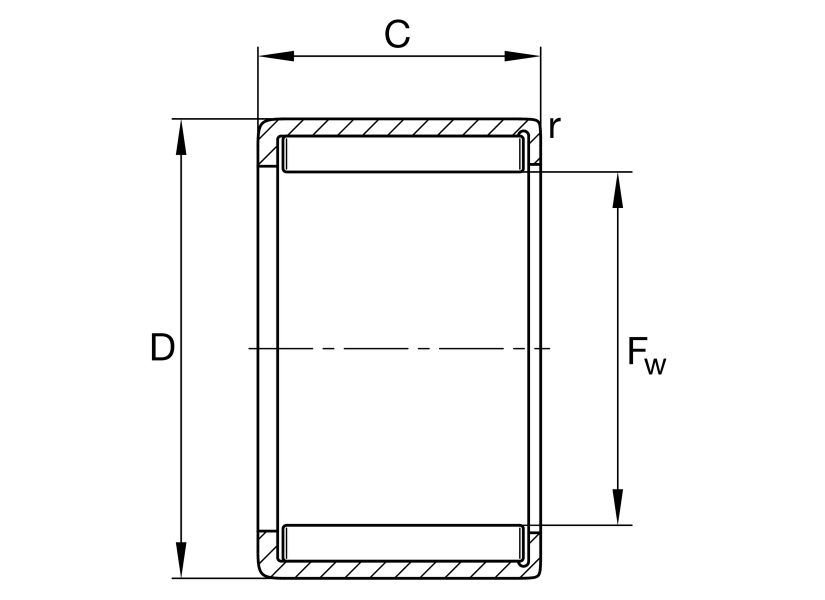

Main Dimensions & Performance Data
Fw
15 mm
Under roller diameter
D
21 mm
Outside diameter
C
16 mm
Width, outer ring
Cr
15,400 N
Basic dynamic load rating, radial
C0r
27,500 N
Basic static load rating, radial
Cur
3,700 N
Fatigue load limit, radial
nG Grease
7,100 1/min
Limiting speed for grease lubrication
nϑr
9,600 1/min
Reference speed
≈m
17.3 g
Weight
