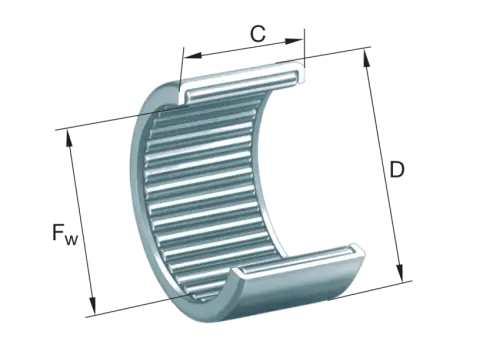

INA HN1612
Needle Roller Bearings
Drawn cup needle roller bearings with open ends HN, full complement needle roller set
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

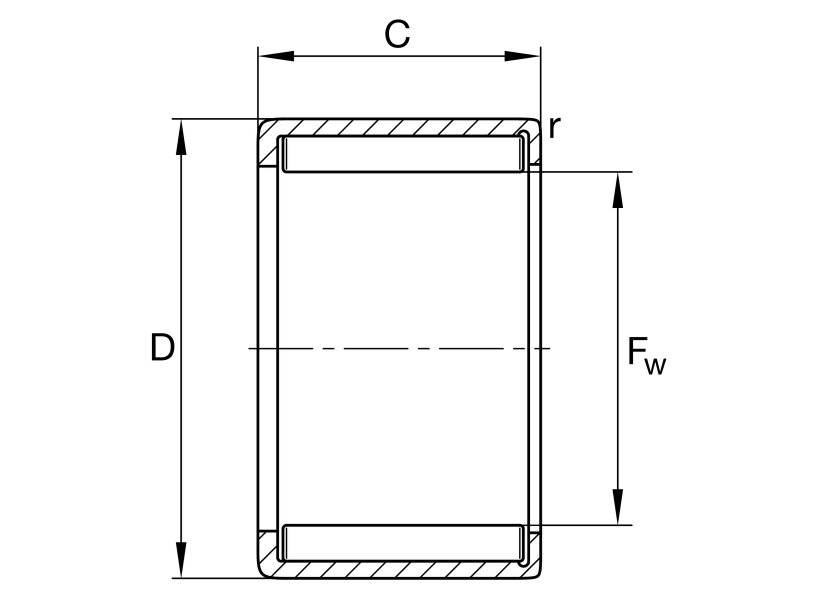

Main Dimensions & Performance Data
Fw
16 mm
Under roller diameter
D
22 mm
Outside diameter
C
12 mm
Width, outer ring
Cr
12,000 N
Basic dynamic load rating, radial
C0r
20,300 N
Basic static load rating, radial
Cur
2,650 N
Fatigue load limit, radial
nG Grease
6,700 1/min
Limiting speed for grease lubrication
nϑr
9,200 1/min
Reference speed
≈m
13 g
Weight
