INA HN2520
Needle Roller Bearings
Drawn cup needle roller bearings with open ends HN, full complement needle roller set
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

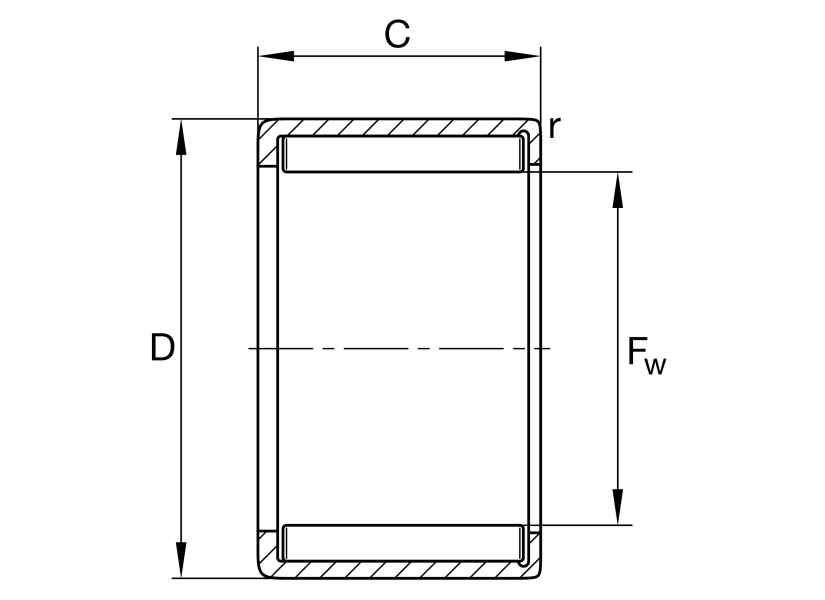

Main Dimensions & Performance Data
Fw
25 mm
Under roller diameter
D
32 mm
Outside diameter
C
20 mm
Width, outer ring
Cr
28,000 N
Basic dynamic load rating, radial
C0r
59,000 N
Basic static load rating, radial
Cur
8,000 N
Fatigue load limit, radial
nG Grease
4,350 1/min
Limiting speed for grease lubrication
nϑr
5,800 1/min
Reference speed
≈m
40 g
Weight
