INA HN2820
Needle Roller Bearings
Drawn cup needle roller bearings with open ends HN, full complement needle roller set
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

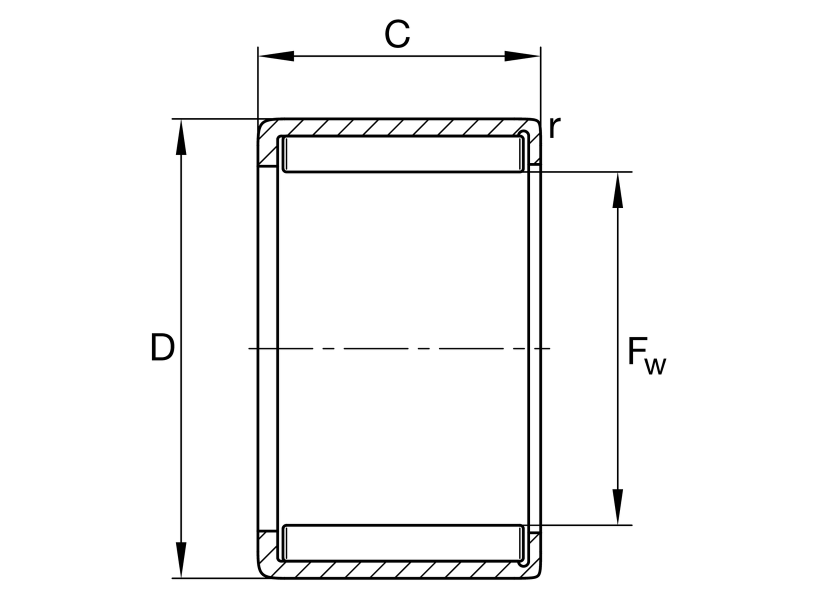

Main Dimensions & Performance Data
Fw
28 mm
Under roller diameter
D
35 mm
Outside diameter
C
20 mm
Width, outer ring
Cr
30,000 N
Basic dynamic load rating, radial
C0r
67,000 N
Basic static load rating, radial
Cur
9,100 N
Fatigue load limit, radial
nG Grease
3,950 1/min
Limiting speed for grease lubrication
nϑr
5,200 1/min
Reference speed
≈m
44.22 g
Weight
