INA HN3520
Needle Roller Bearings
Drawn cup needle roller bearings with open ends HN, full complement needle roller set
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

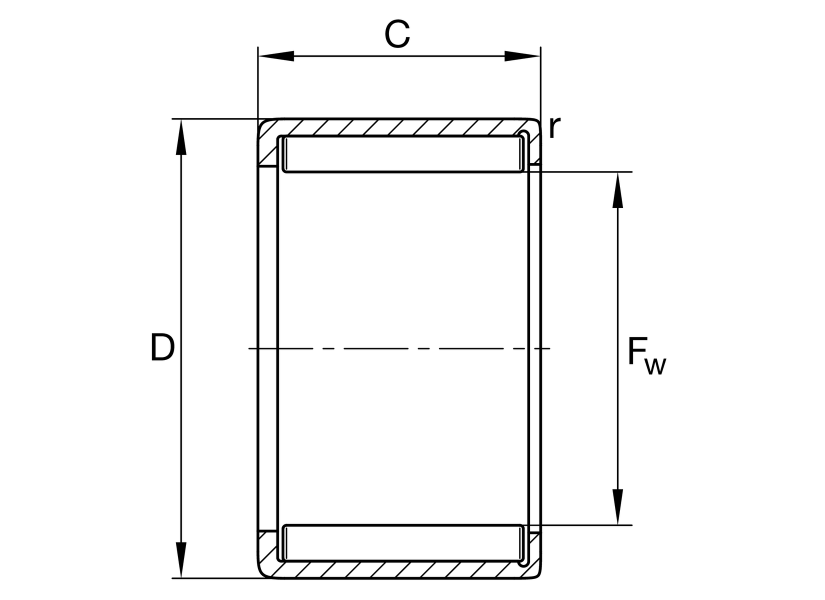

Main Dimensions & Performance Data
Fw
35 mm
Under roller diameter
D
42 mm
Outside diameter
C
20 mm
Width, outer ring
Cr
33,500 N
Basic dynamic load rating, radial
C0r
83,000 N
Basic static load rating, radial
Cur
11,300 N
Fatigue load limit, radial
nG Grease
3,200 1/min
Limiting speed for grease lubrication
nϑr
4,250 1/min
Reference speed
≈m
54 g
Weight
